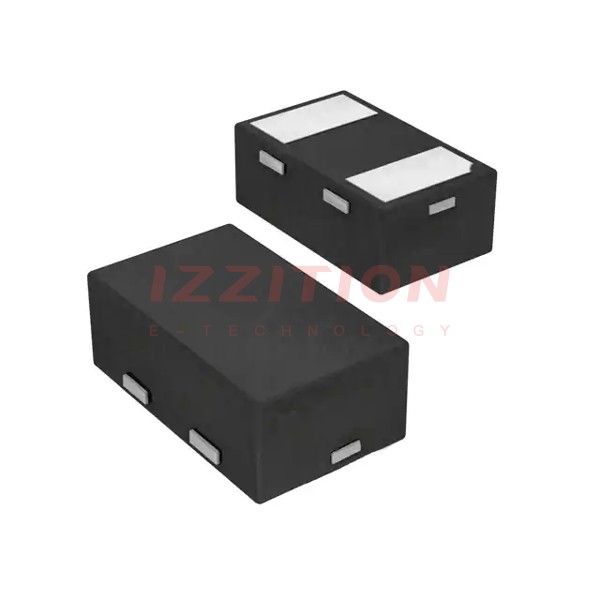

| Part Number | D10V0H1U2LP-7B | D12V0H1U2LP-7B | D15V0H1U2LP-7B | D14V0H1U2LP-7B | D18V0H1U2LP-7B | D20V0H1U2LP-7B |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 10V (Max) | 12V (Max) | 15V (Max) | 14V (Max) | 18V (Max) | 20V (Max) |
| Voltage - Breakdown (Min) | 11.5V | 13.3V | 16V | 15V | 20V | 22V |
| Voltage - Clamping (Max) @ Ipp | 20V | 23V | 27V | 32V | 32V | 34V |
| Current - Peak Pulse (10/1000µs) | 15A (8/20µs) | 13A (8/20µs) | 12A (8/20µs) | 3A (8/20µs) | 11A (8/20µs) | 10A (8/20µs) |
| Power - Peak Pulse | 300W | 300W | 300W | 96W | 350W | 340W |
| Power Line Protection | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 100pF @ 1MHz | 80pF @ 1MHz | 70pF @ 1MHz | 76pF @ 1MHz | 58pF @ 1MHz | 55pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) |
| Supplier Device Package | X1-DFN1006-2 | X1-DFN1006-2 | X1-DFN1006-2 | X1-DFN1006-2 | X1-DFN1006-2 | X1-DFN1006-2 |
