| Part Number | BZT52C3V9LP-7 | BZT52C3V0LP-7 | BZT52C3V3LP-7 | BZT52C3V6LP-7 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 3.9 V | 3 V | 3.3 V | 3.6 V |
| Tolerance | ±5% | ±7% | ±6% | ±6% |
| Power - Max | 250 mW | 250 mW | 250 mW | 250 mW |
| Impedance (Max) (Zzt) | 90 Ohms | 95 Ohms | 95 Ohms | 90 Ohms |
| Current - Reverse Leakage @ Vr | 3 µA @ 1 V | 10 µA @ 1 V | 5 µA @ 1 V | 5 µA @ 1 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

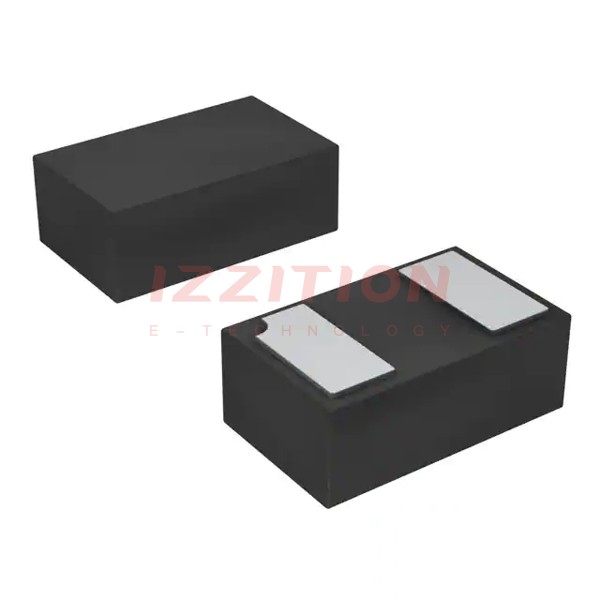

| Package / Case | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) |
| Supplier Device Package | 2-DFN1006 | X1-DFN1006-2 | X1-DFN1006-2 | X1-DFN1006-2 |
