Please send RFQ , we will respond immediately.

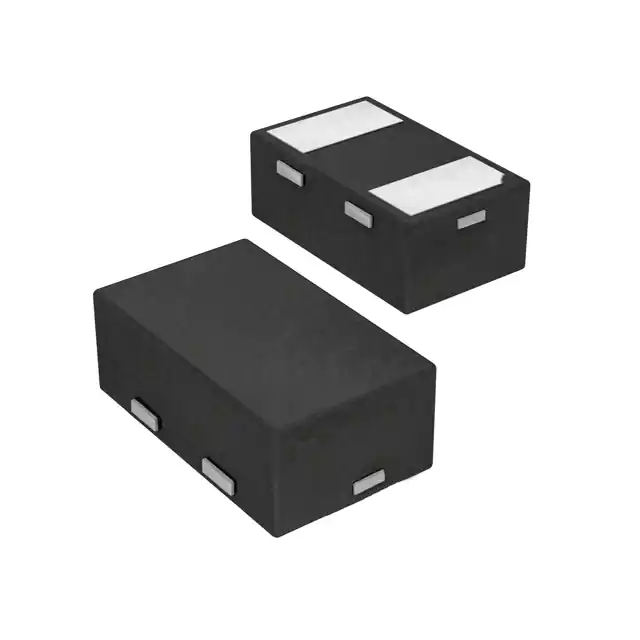

| Part Number | BZT52C16LP-7 | BZT52C18LP-7 | BZT52C16LPQ-7 | BZT52C12LP-7 | BZT52C13LP-7 | BZT52C15LP-7 |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 16 V | 18 V | 16 V | 12 V | 13 V | 15 V |
| Tolerance | ±6% | ±6.41% | ±5.62% | ±5.39% | ±6% | ±6% |
| Power - Max | 250 mW | 250 mW | 250 mW | 250 mW | 250 mW | 250 mW |
| Impedance (Max) (Zzt) | 40 Ohms | 45 Ohms | 40 Ohms | 25 Ohms | 30 Ohms | 30 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 11.2 V | 100 nA @ 12.6 V | 100 nA @ 11.2 V | 100 nA @ 8 V | 100 nA @ 8 V | 100 nA @ 10.5 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C (TJ) | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) |
| Supplier Device Package | X1-DFN1006-2 | X1-DFN1006-2 | X1-DFN1006-2 | X1-DFN1006-2 | X1-DFN1006-2 | X1-DFN1006-2 |
