Please send RFQ , we will respond immediately.

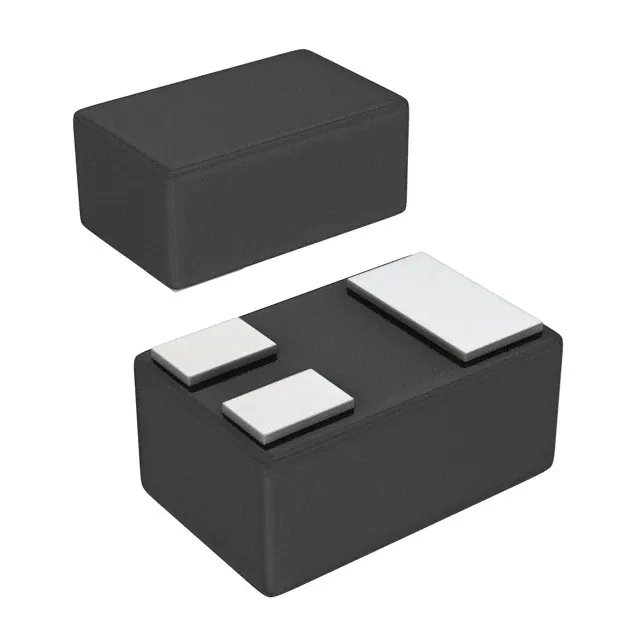

| Part Number | BC847BLP-7B | BC847BLP4-7B | BC847BLP-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 100 mA | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 45 V | 45 V | 45 V |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 5mA, 100mA | 600mV @ 5mA, 100mA | 600mV @ 5mA, 100mA |
| Current - Collector Cutoff (Max) | 15nA (ICBO) | 15nA (ICBO) | 15nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2mA, 5V | 200 @ 2mA, 5V | 200 @ 2mA, 5V |
| Power - Max | 250 mW | 250 mW | 250 mW |
| Frequency - Transition | 100MHz | 100MHz | 100MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-UFDFN | 3-XFDFN | 3-UFDFN |
| Supplier Device Package | X1-DFN1006-3 | X2-DFN1006-3 | X1-DFN1006-3 |
