| Part Number | BC847BFZ-7B | BC847BFA-7B |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| Transistor Type | NPN | NPN |
| Current - Collector (Ic) (Max) | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 45 V | 45 V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 5mA, 100mA | 300mV @ 5mA, 100mA |
| Current - Collector Cutoff (Max) | 15nA | 15nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2mA, 5V | 200 @ 2mA, 5V |
| Power - Max | 435 mW | 435 mW |
| Frequency - Transition | 100MHz | 170MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

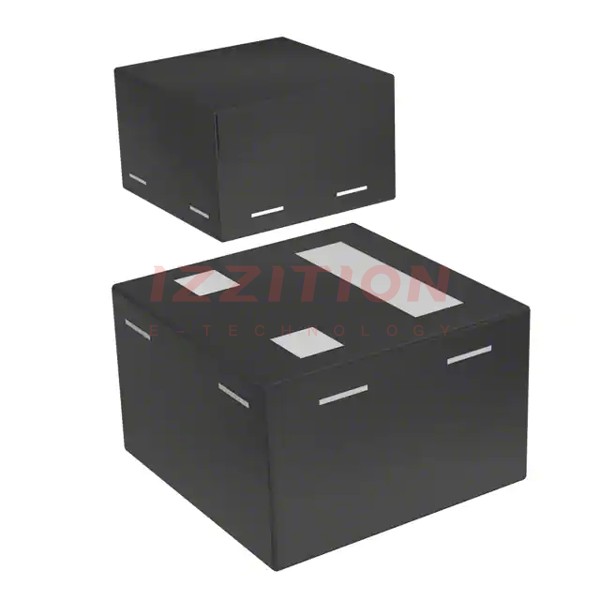

| Package / Case | 3-XFDFN | 3-XFDFN |
| Supplier Device Package | X2-DFN0606-3 | X2-DFN0806-3 |
