Diodes Incorporated-BC846BLP4-7B - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	NPN
Current - Collector (Ic) (Max):	100 mA
Voltage - Collector Emitter Breakdown (Max):	65 V
Vce Saturation (Max) @ Ib, Ic:	600mV @ 5mA, 100mA
Current - Collector Cutoff (Max):	15nA
DC Current Gain (hFE) (Min) @ Ic, Vce:	200 @ 2mA, 5V
Power - Max:	410 mW
Frequency - Transition:	300MHz
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	3-XFDFN
Supplier Device Package:	X2-DFN1006-3

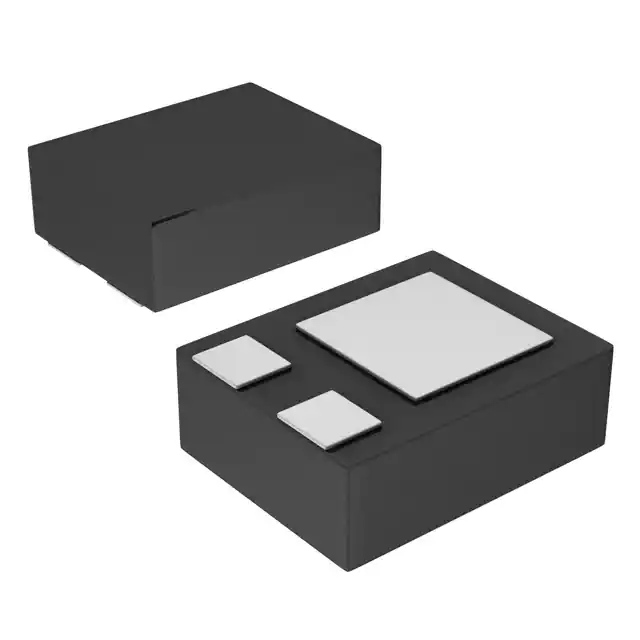

Diodes Incorporated BC846BLP4-7B
