Diodes Incorporated-BC56-16PA-7 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	NPN
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	80 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	100 @ 150mA, 2V
Power - Max:	520 mW
Frequency - Transition:	125MHz
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

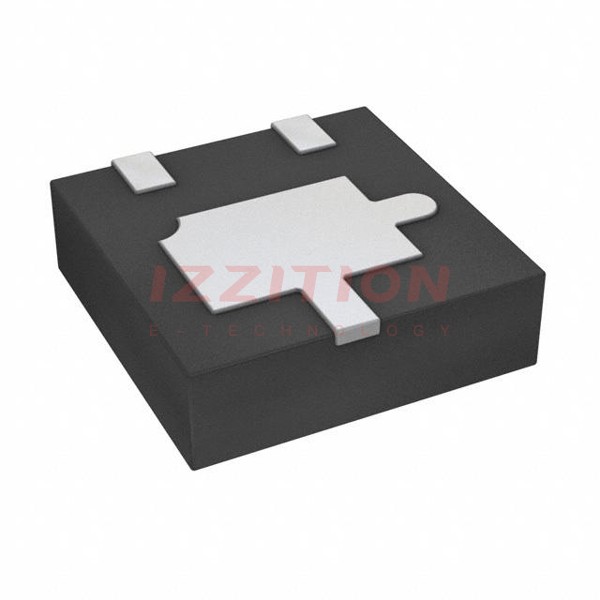

Package / Case:	3-UDFN Exposed Pad
Supplier Device Package:	U-DFN2020-3

Diodes Incorporated BC56-16PA-7
