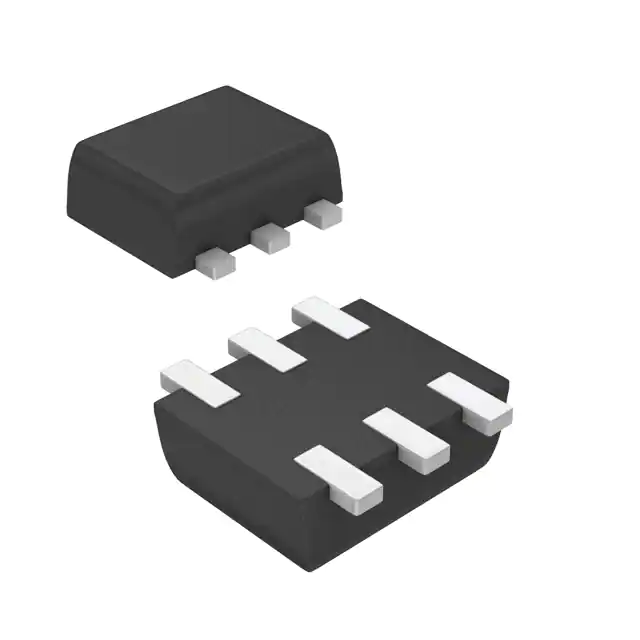

| Part Number | BAW101V-7 | BAW101-7 | BAW101S-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Diode Configuration | 2 Independent | 2 Independent | 2 Independent |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 325 V | 300 V | 300 V |
| Current - Average Rectified (Io) (per Diode) | 250mA (DC) | 250mA (DC) | 250mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns | 50 ns | 50 ns |
| Current - Reverse Leakage @ Vr | 150 nA @ 250 V | 150 nA @ 250 V | 150 nA @ 250 V |
| Operating Temperature - Junction | -55°C ~ 150°C | -65°C ~ 150°C | -55°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-563, SOT-666 | TO-253-4, TO-253AA | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-563 | SOT-143 | SOT-363 |
