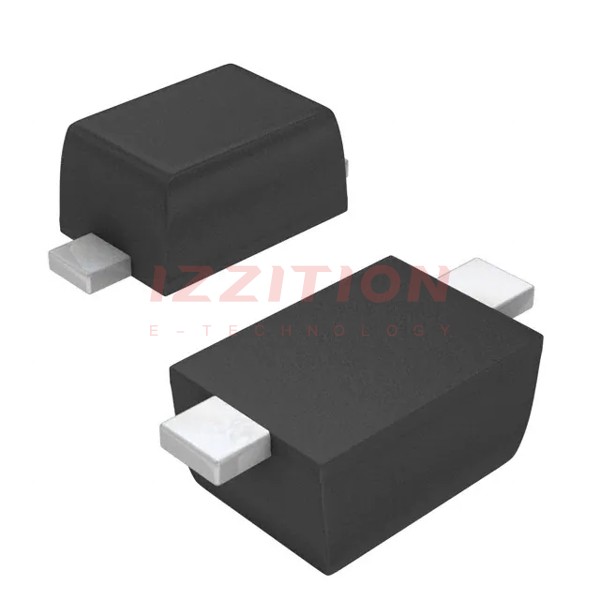

Diodes Incorporated-BAT64T5Q-7-F - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	40 V
Current - Average Rectified (Io):	250mA (DC)
Voltage - Forward (Vf) (Max) @ If:	480 mV @ 30 mA
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	5 ns
Current - Reverse Leakage @ Vr:	2 µA @ 40 V
Capacitance @ Vr, F:	6pF @ 5V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	SC-79, SOD-523
Supplier Device Package:	SOD-523
Operating Temperature - Junction:	-65°C ~ 150°C

Diodes Incorporated BAT64T5Q-7-F
