Diodes Incorporated-BAS40LP-7-79 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	40 V
Current - Average Rectified (Io):	200mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1 V @ 40 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	5 ns
Current - Reverse Leakage @ Vr:	200 nA @ 30 V
Capacitance @ Vr, F:	2.3pF @ 0V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	0402 (1006 Metric)
Supplier Device Package:	X1-DFN1006-2
Operating Temperature - Junction:	-55°C ~ 150°C

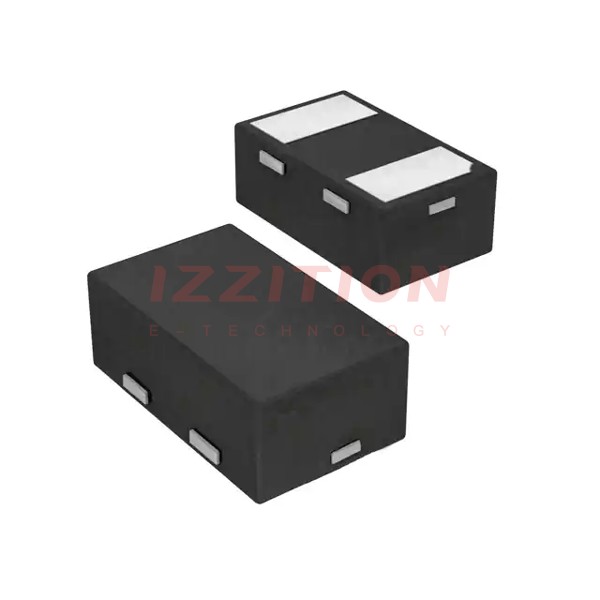

Diodes Incorporated BAS40LP-7-79
