Diodes Incorporated-BAS116LPH4-7B - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	85 V
Current - Average Rectified (Io):	215mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 150 mA
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	3 µs
Current - Reverse Leakage @ Vr:	5 nA @ 75 V
Capacitance @ Vr, F:	1.5pF @ 0V, 1MHz
Mounting Type:	Surface Mount

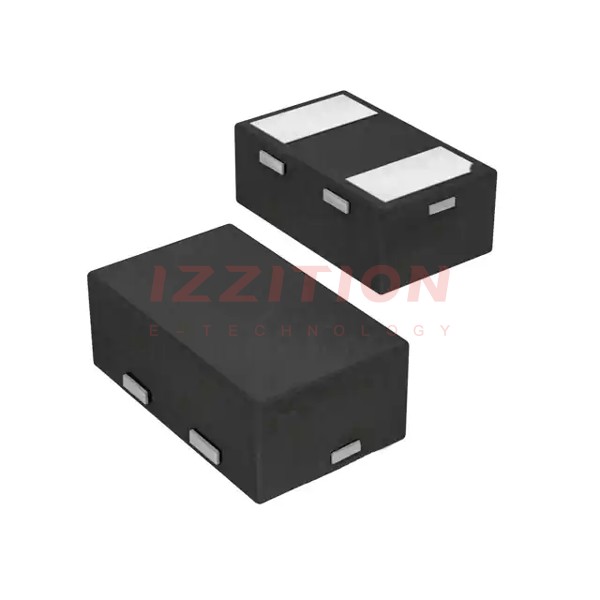

Package / Case:	0402 (1006 Metric)
Supplier Device Package:	X2-DFN1006-2
Operating Temperature - Junction:	-55°C ~ 150°C

Diodes Incorporated BAS116LPH4-7B
