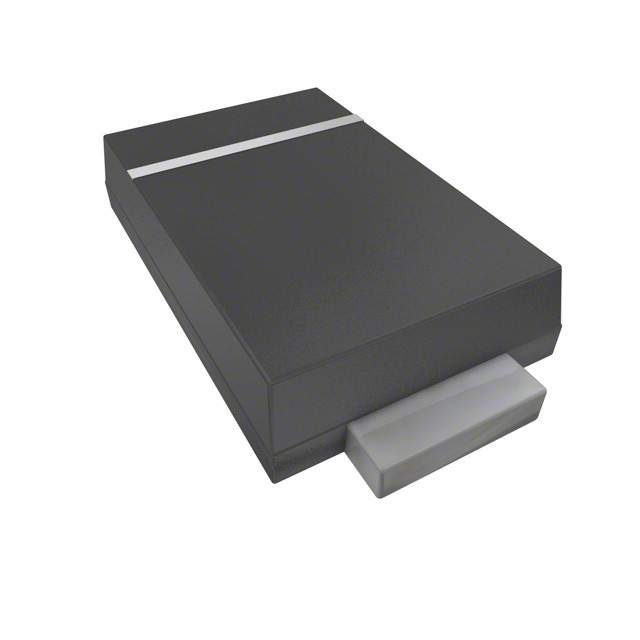

| Part Number | B340AF-13 | B345AF-13 | B340AX-13 | B360AF-13 | B340AXF-13 | B350AF-13 | B240AF-13 | B320AF-13 | B330AF-13 | B340A-13 | B340AE-13 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Discontinued at Digi-Key | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 45 V | 40 V | 60 V | 40 V | 50 V | 40 V | 20 V | 30 V | 40 V | 40 V |
| Current - Average Rectified (Io) | 3A | 3A | 3A | 3A | 3A | 3A | 2A | 3A | 3A | 3A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 3 A | 500 mV @ 3 A | 500 mV @ 3 A | 650 mV @ 3 A | 500 mV @ 3 A | 650 mV @ 3 A | 500 mV @ 2 A | 500 mV @ 3 A | 500 mV @ 3 A | 500 mV @ 3 A | 500 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 200 µA @ 40 V | 300 µA @ 45 V | 200 µA @ 40 V | 200 µA @ 60 V | 200 µA @ 40 V | 200 µA @ 50 V | 200 µA @ 40 V | 200 µA @ 20 V | 200 µA @ 30 V | 500 µA @ 40 V | 200 µA @ 40 V |
| Capacitance @ Vr, F | 120pF @ 4V, 1MHz | 120pF @ 4V, 1MHz | - | 110pF @ 4V, 1MHz | - | 110pF @ 4V, 1MHz | 93pF @ 4V, 1MHz | 140pF @ 4V, 1MHz | 140pF @ 4V, 1MHz | 200pF @ 4V, 1MHz | 140pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-214AC, SMA | DO-221AC, SMA Flat Leads | DO-214AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-214AC, SMA | DO-214AC, SMA |
| Supplier Device Package | SMAF | SMAF | SMA | SMAF | SMAF | SMAF | SMAF | SMAF | SMAF | SMA | SMA |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
