Please send RFQ , we will respond immediately.
| Part Number | AZ39150S-5.0TRE1 | AZ39150S-5.0TRG1 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 13.2V | 13.2V |
| Voltage - Output (Min/Fixed) | 5V | 5V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.5V @ 1.5A | 0.5V @ 1.5A |
| Current - Output | 1.5A | 1.5A |
| Current - Quiescent (Iq) | - | - |
| Current - Supply (Max) | - | - |
| PSRR | - | - |
| Control Features | - | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |

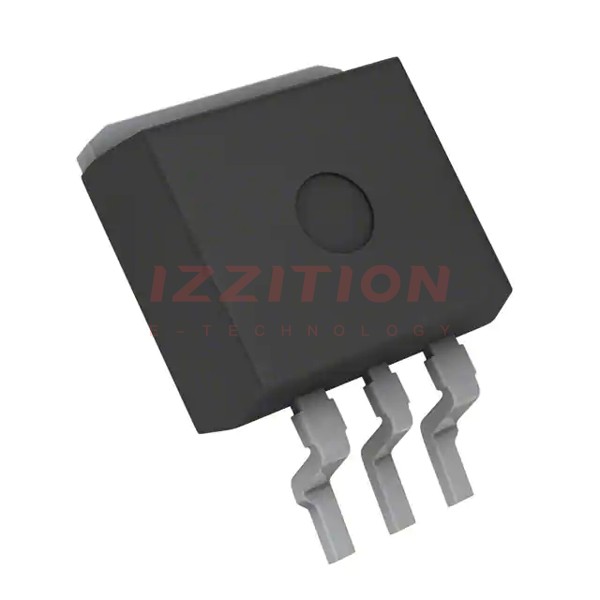

| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA |
| Supplier Device Package | TO-263 | TO-263 |
