Please send RFQ , we will respond immediately.

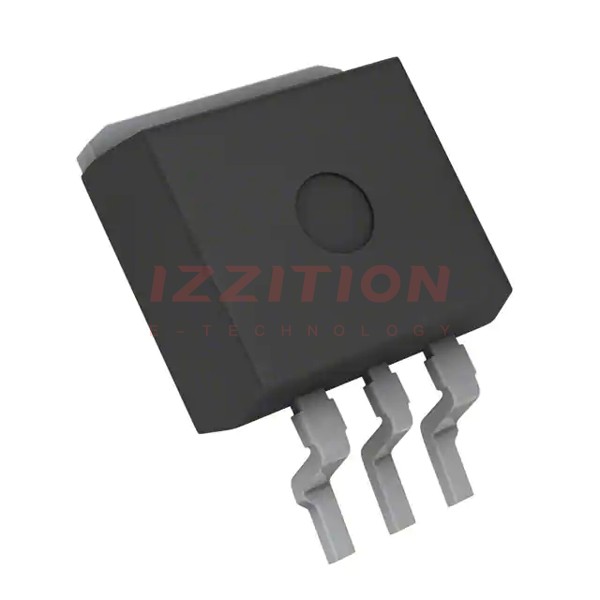

| Part Number | AZ1117S-ADJTRE1 | AZ1117D-ADJTRE1 | AZ1117H-ADJTRE1 | AZ1117R-ADJTRE1 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 15V | 15V | 15V | 15V |
| Voltage - Output (Min/Fixed) | 1.25V | 1.25V | 1.25V | 1.25V |
| Voltage - Output (Max) | 13.75V | 13.75V | 13.75V | 13.75V |
| Voltage Dropout (Max) | 1.25V @ 1A | 1.25V @ 1A | 1.25V @ 1A | 1.25V @ 1A |
| Current - Output | 1.25A | 1A | 1A | 1.25A |
| Current - Quiescent (Iq) | 10 mA | 10 mA | 10 mA | 10 mA |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) |
| Control Features | - | - | - | - |
| Protection Features | Thermal Shutdown | Thermal Shutdown | Thermal Shutdown | Thermal Shutdown |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-261-4, TO-261AA | TO-243AA |
| Supplier Device Package | TO-263 | TO-252-3 | SOT-223-3 | SOT-89-3 |
