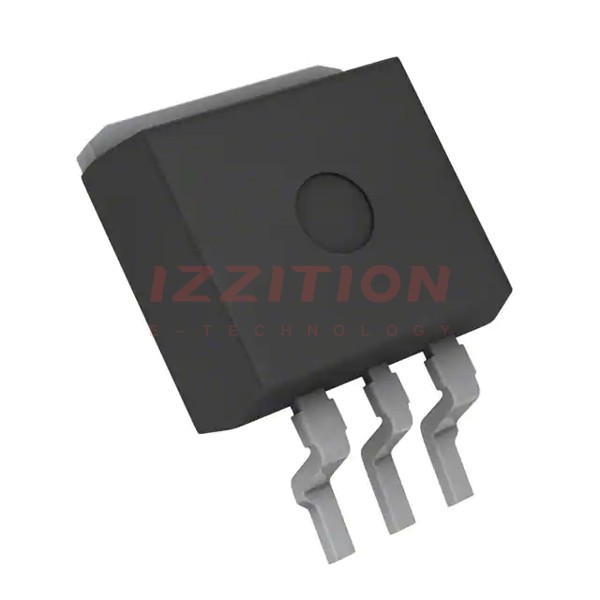

| Part Number | AZ1086S-3.3TRE1 | AZ1084S-3.3TRE1 | AZ1085S-3.3TRE1 | AZ1086D-3.3TRE1 | AZ1086H-3.3TRE1 |
|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 15V | 12V | 12V | 15V | 15V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 1.5V @ 1.5A | 1.5V @ 5A | 1.5V @ 3A | 1.5V @ 1.5A | 1.5V @ 1.5A |
| Current - Output | 1.5A | 5A | 3A | 1.5A | 1.5A |
| Current - Quiescent (Iq) | 10 mA | 10 mA | 10 mA | 10 mA | 10 mA |
| Current - Supply (Max) | - | - | - | - | - |
| PSRR | 75dB (120Hz) | 72dB (120Hz) | 72dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) |
| Control Features | - | - | - | - | - |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-261-4, TO-261AA |
| Supplier Device Package | TO-263 | TO-263 | TO-263 | TO-252-3 | SOT-223-3 |
