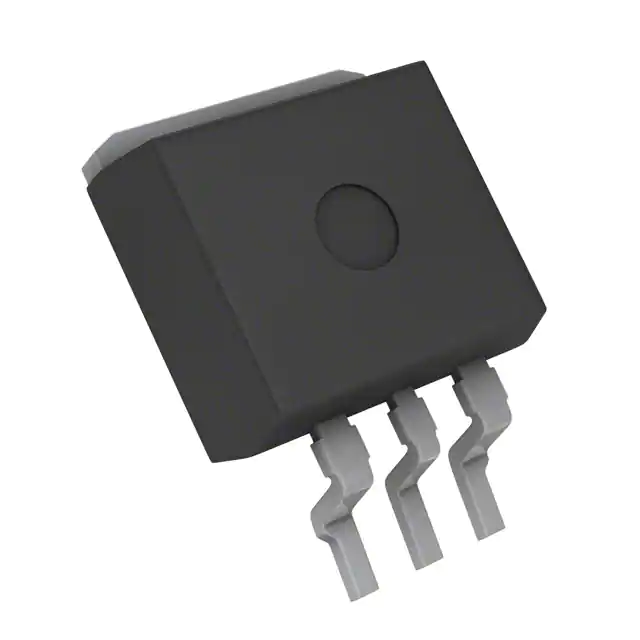

| Part Number | AZ1085CS-ADJTRE1 | AZ1085CS2-ADJTRE1 | AZ1085CS-ADJTRG1 | AZ1085S-ADJTRE1 | AZ1084CS-ADJTRE1 |
|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 12V | 12V | 12V | 12V | 12V |
| Voltage - Output (Min/Fixed) | 1.25V | 1.25V | 1.25V | 1.25V | 1.25V |
| Voltage - Output (Max) | 10.5V | 10.5V | 10.5V | 10.5V | 10.5V |
| Voltage Dropout (Max) | 1.5V @ 3A | 1.5V @ 3A | 1.5V @ 3A | 1.5V @ 3A | 1.5V @ 4.5A |
| Current - Output | 3A | 3A | 3A | 3A | 5A |
| Current - Quiescent (Iq) | 10 mA | 10 mA | 10 mA | 10 mA | 10 mA |
| Current - Supply (Max) | - | - | - | - | - |
| PSRR | 72dB (120Hz) | 72dB (120Hz) | 72dB (120Hz) | 72dB (120Hz) | 72dB (120Hz) |
| Control Features | - | - | - | - | - |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 | TO-263 | TO-263 | TO-263 | TO-263 |
