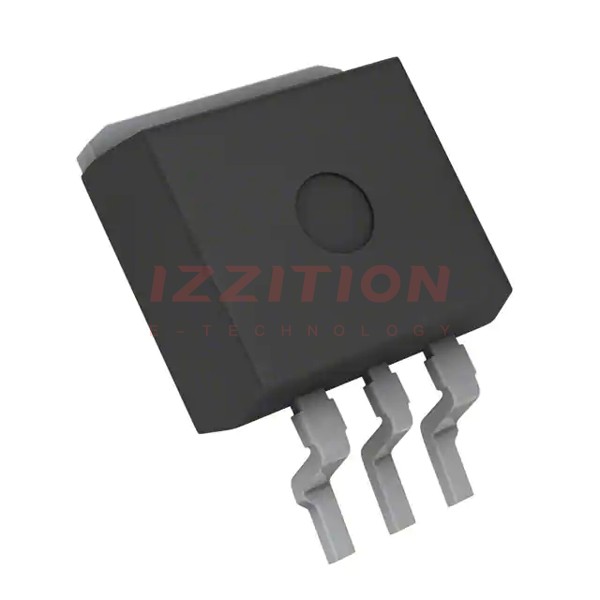

| Part Number | AZ1084S-3.3TRE1 | AZ1084S2-3.3TRE1 | AZ1085S-3.3TRE1 | AZ1086S-3.3TRE1 | AZ1084CS-3.3TRE1 | AZ1084D-3.3TRE1 |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 12V | 12V | 12V | 15V | 12V | 12V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | 1.5V @ 5A | 1.5V @ 5A | 1.5V @ 3A | 1.5V @ 1.5A | 1.5V @ 4.5A | 1.5V @ 5A |
| Current - Output | 5A | 5A | 3A | 1.5A | 5A | 5A |
| Current - Quiescent (Iq) | 10 mA | 10 mA | 10 mA | 10 mA | 10 mA | 10 mA |
| Current - Supply (Max) | - | - | - | - | - | - |
| PSRR | 72dB (120Hz) | 72dB (120Hz) | 72dB (120Hz) | 75dB (120Hz) | 72dB (120Hz) | 72dB (120Hz) |
| Control Features | - | - | - | - | - | - |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-263 | TO-263 | TO-263 | TO-263 | TO-263 | TO-252-3 |
