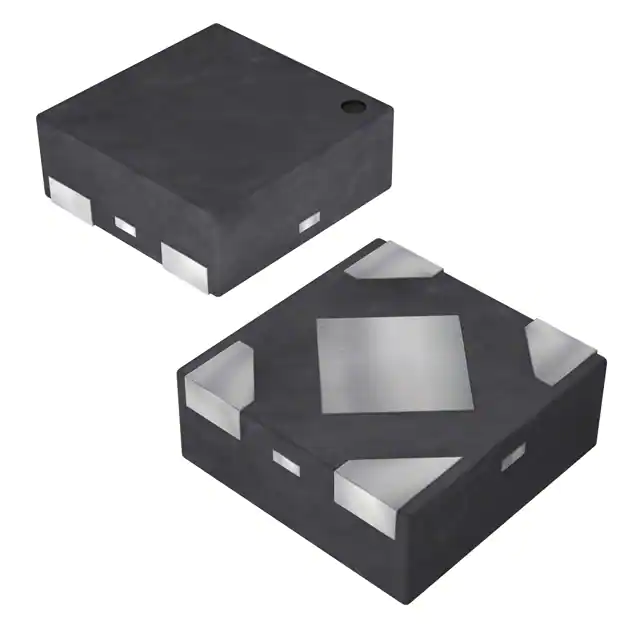

| Part Number | AP7354D-33FS4-7 | AP7354-33FS4-7 | AP7354D-30FS4-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.35V @ 150mA | 0.35V @ 150mA | 0.35V @ 150mA |
| Current - Output | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 0.6 µA | 0.6 µA | 0.6 µA |
| Current - Supply (Max) | - | - | - |
| PSRR | - | - | - |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current | Over Current | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad |
| Supplier Device Package | X2-DFN1010-4 | X2-DFN1010-4 | X2-DFN1010-4 (Type B) |
