| Part Number | AP7351D-18FS4-7B | AP7351D-28FS4-7B | AP7351D-12FS4-7B |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V | 2.8V | 1.2V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.6V @ 150mA | 0.4V @ 150mA | 0.9V @ 150mA |
| Current - Output | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 1 µA | 1 µA | 1 µA |
| Current - Supply (Max) | - | - | - |
| PSRR | 60dB (1kHz) | 60dB (1kHz) | 60dB (1kHz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current | Over Current | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

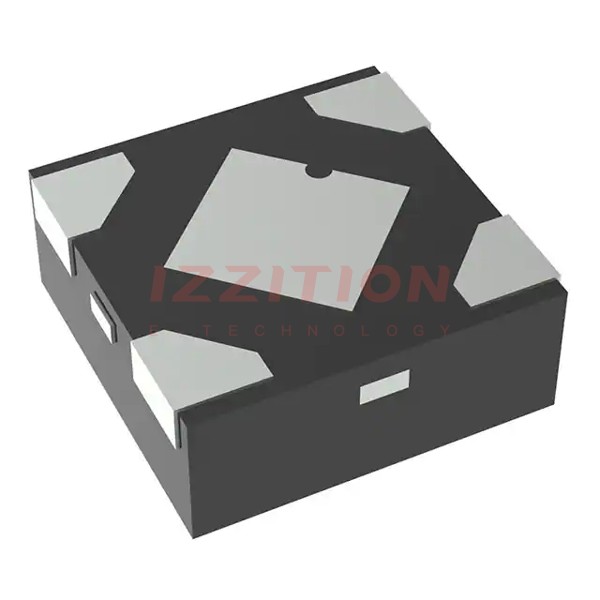

| Package / Case | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad |
| Supplier Device Package | X2-DFN1010-4 (Type B) | X2-DFN1010-4 (Type B) | X2-DFN1010-4 (Type B) |
