Please send RFQ , we will respond immediately.

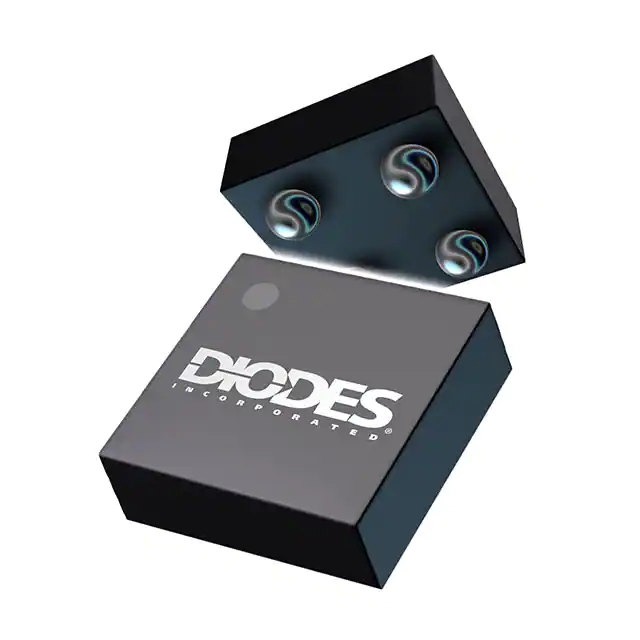

| Part Number | AP7350D-15CF4-7 | AP7350D-18CF4-7 | AP7350D-25CF4-7 | AP7350D-45CF4-7 | AP7350-15CF4-7 | AP7350D-12CF4-7 |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.25V | 5.25V | 5.25V | 5.25V | 5.25V | 5.25V |
| Voltage - Output (Min/Fixed) | 1.5V | 1.8V | 2.5V | 4.5V | 1.5V | 1.2V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.75V @ 150mA | 0.6V @ 150mA | 0.48V @ 150mA | 0.35V @ 150mA | 0.75V @ 150mA | 0.9V @ 150mA |
| Current - Output | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 400 nA | 400 nA | 400 nA | 700 nA | 400 nA | 400 nA |
| Current - Supply (Max) | - | - | - | - | - | - |
| PSRR | - | - | - | - | - | - |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Current Limit | Current Limit | Current Limit | Current Limit | Current Limit | Current Limit |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-XFBGA, WLBGA | 4-XFBGA, WLBGA | 4-XFBGA, WLBGA | 4-XFBGA, WLBGA | 4-XFBGA, WLBGA | 4-XFBGA, WLBGA |
| Supplier Device Package | X2-WLB0606-4 | X2-WLB0606-4 | X2-WLB0606-4 | X2-WLB0606-4 | X2-WLB0606-4 | X2-WLB0606-4 |
