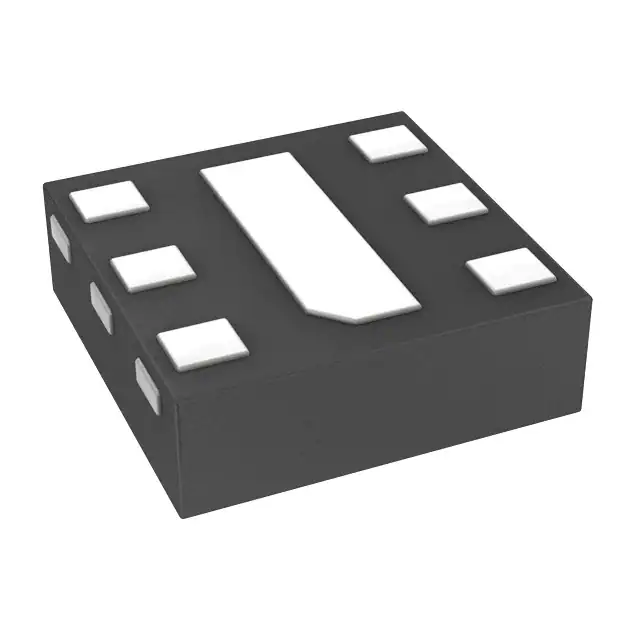

| Part Number | AP7346D-2833FS6-7 | AP7346D-1833FS6-7 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 2 | 2 |
| Voltage - Input (Max) | 5.25V | 5.25V |
| Voltage - Output (Min/Fixed) | 2.8V, 3.3V | 1.8V, 3.3V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.3V @ 120mA, 0.29V @ 120mA | 0.39V @ 120mA, 0.29V @ 120mA |
| Current - Output | 130mA, 130mA | 130mA, 130mA |
| Current - Quiescent (Iq) | 100 µA | 100 µA |
| Current - Supply (Max) | - | - |
| PSRR | 75dB (1kHz) | 75dB (1kHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current | Over Current |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad |
| Supplier Device Package | X2-DFN1212-6 | X2-DFN1212-6 |
