| Part Number | AP7345D-285285RH4-7 | AP7344D-285285RH4-7 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 2 | 2 |
| Voltage - Input (Max) | 5.25V | 5.25V |
| Voltage - Output (Min/Fixed) | 2.85V, 2.85V | 2.85V, 2.85V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.3V @ 300mA, 0.3V @ 300mA | 0.3V @ 300mA, 0.3V @ 300mA |
| Current - Output | 300mA, 300mA | 300mA, 300mA |
| Current - Quiescent (Iq) | 140 µA | 140 µA |
| Current - Supply (Max) | 70 µA | - |
| PSRR | 75dB (1kHz) | 75dB (1kHz) |
| Control Features | Current Limit, Enable | Enable |
| Protection Features | Short Circuit | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount |

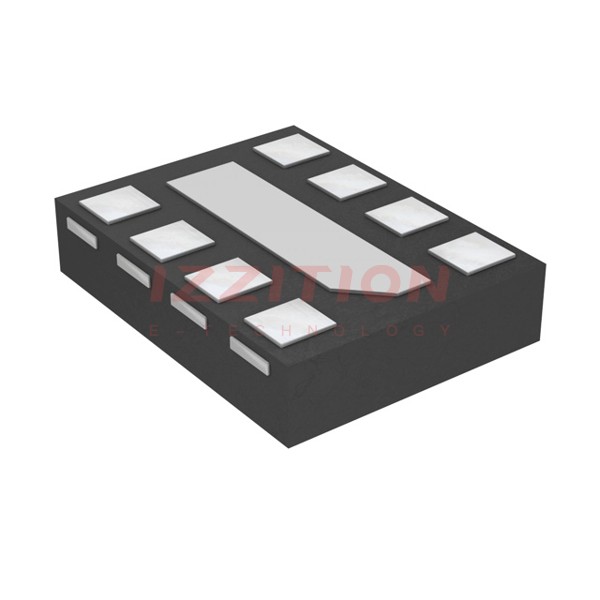

| Package / Case | 8-XFDFN Exposed Pad | 8-XFDFN Exposed Pad |
| Supplier Device Package | X2-DFN1612-8 | X2-DFN1612-8 |
