Please send RFQ , we will respond immediately.
| Part Number | AP7343D-25FS4-7B | AP7343D-28FS4-7B | AP7343D-26FS4-7B | AP7343D-29FS4-7B | AP7343D-35FS4-7B | AP7343D-27FS4-7B | AP7343D-295FS4-7B | AP7343-25FS4-7B | AP7343D-15FS4-7B | AP7343D-20FS4-7B | AP7343D-21FS4-7B | AP7343D-22FS4-7B | AP7343D-23FS4-7B |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.25V | 5.25V | 5.25V | 5.25V | 5.25V | 5.25V | 5.25V | 5.25V | 5.25V | 5.25V | 5.25V | 5.25V | 5.25V |
| Voltage - Output (Min/Fixed) | 2.5V | 2.8V | 2.6V | 2.9V | 3.5V | 2.7V | 2.95V | 2.5V | 1.5V | 2V | 2.1V | 2.2V | 2.3V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.3V @ 300mA | 0.3V @ 300mA | 0.3V @ 300mA | 0.3V @ 300mA | 0.29V @ 300mA | 0.3V @ 300mA | 0.3V @ 300mA | 0.3V @ 300mA | 0.44V @ 300mA | 0.39V @ 300mA | 0.34V @ 300mA | 0.34V @ 300mA | 0.34V @ 300mA |
| Current - Output | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA |
| Current - Quiescent (Iq) | 60 µA | 60 µA | 60 µA | 60 µA | 60 µA | 60 µA | 60 µA | 60 µA | 60 µA | 60 µA | 60 µA | 60 µA | 60 µA |
| Current - Supply (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| PSRR | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current | Over Current | Over Current | Over Current | Over Current | Over Current | Over Current | Over Current | Over Current | Over Current | Over Current | Over Current | Over Current |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

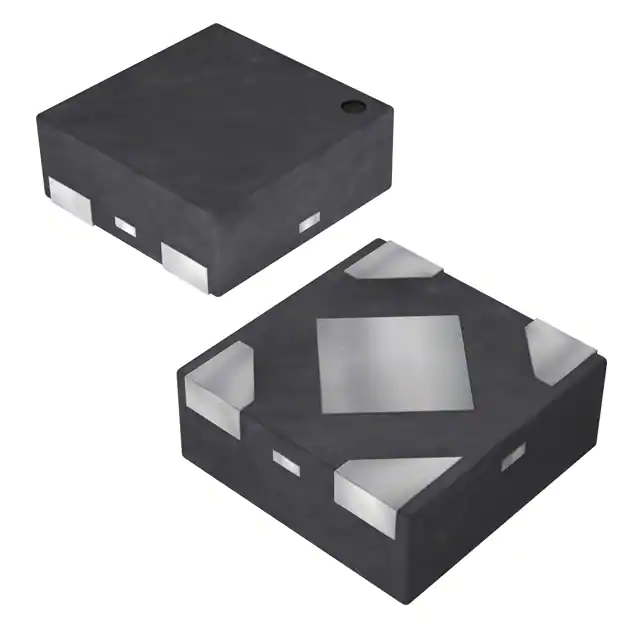

| Package / Case | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad |
| Supplier Device Package | X2-DFN1010-4 | X2-DFN1010-4 | X2-DFN1010-4 | X2-DFN1010-4 | X2-DFN1010-4 | X2-DFN1010-4 | X2-DFN1010-4 | X2-DFN1010-4 | X2-DFN1010-4 | X2-DFN1010-4 | X2-DFN1010-4 | X2-DFN1010-4 | X2-DFN1010-4 |
