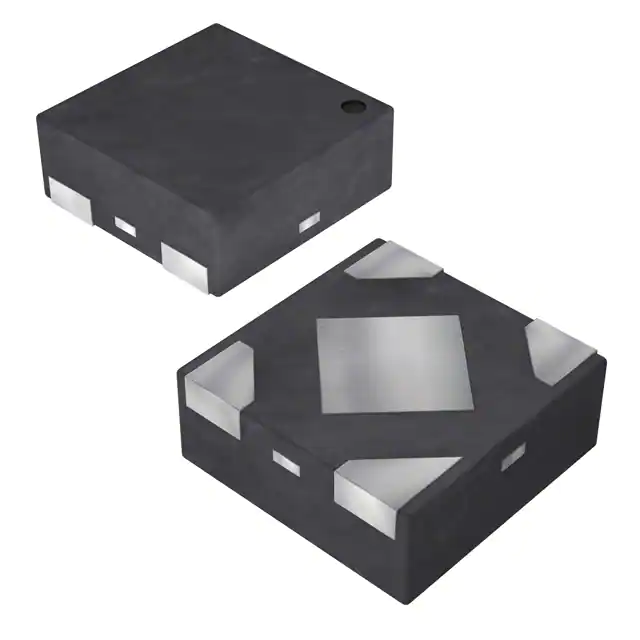

| Part Number | AP7315D-29FS4-7B | AP7315D-22FS4-7B | AP7315D-23FS4-7B | AP7315D-25FS4-7B | AP7315D-26FS4-7B | AP7315D-28FS4-7B | AP7315D-295FS4-7B |
|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.25V | 5.25V | 5.25V | 5.25V | 5.25V | 5.25V | 5.25V |
| Voltage - Output (Min/Fixed) | 2.9V | 2.2V | 2.3V | 2.5V | 2.6V | 2.8V | 2.95V |
| Voltage - Output (Max) | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.29V @ 150mA | 0.38V @ 150mA | 0.38V @ 150mA | 0.32V @ 150mA | 0.32V @ 150mA | 0.29V @ 150mA | 0.29V @ 150mA |
| Current - Output | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 60 µA | 60 µA | 60 µA | 60 µA | 60 µA | 60 µA | 60 µA |
| Current - Supply (Max) | 100 µA | 100 µA | 100 µA | 100 µA | 100 µA | 100 µA | 100 µA |
| PSRR | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) |
| Control Features | - | - | - | - | - | - | - |
| Protection Features | Over Current | Over Current | Over Current | Over Current | Over Current | Over Current | Over Current |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad |
| Supplier Device Package | X2-DFN1010-4 | X2-DFN1010-4 | X2-DFN1010-4 | X2-DFN1010-4 | X2-DFN1010-4 | X2-DFN1010-4 | X2-DFN1010-4 |
