Diodes Incorporated-AP7312-1218FM-7 - PMIC - Voltage Regulators - Linear Product Specifications and Latest Quotes

Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	2
Voltage - Input (Max):	6V
Voltage - Output (Min/Fixed):	1.2V, 1.8V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.3V @ 150mA, 0.3V @ 150mA
Current - Output:	150mA, 150mA
Current - Quiescent (Iq):	80 µA
Current - Supply (Max):	-
PSRR:	65dB (1kHz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature, Short Circuit
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	6-UFDFN Exposed Pad
Supplier Device Package:	U-DFN2018-6

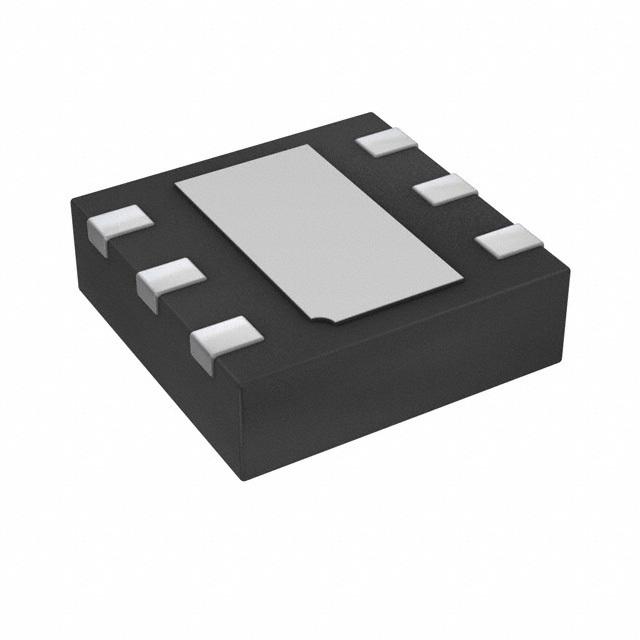

Diodes Incorporated AP7312-1218FM-7
