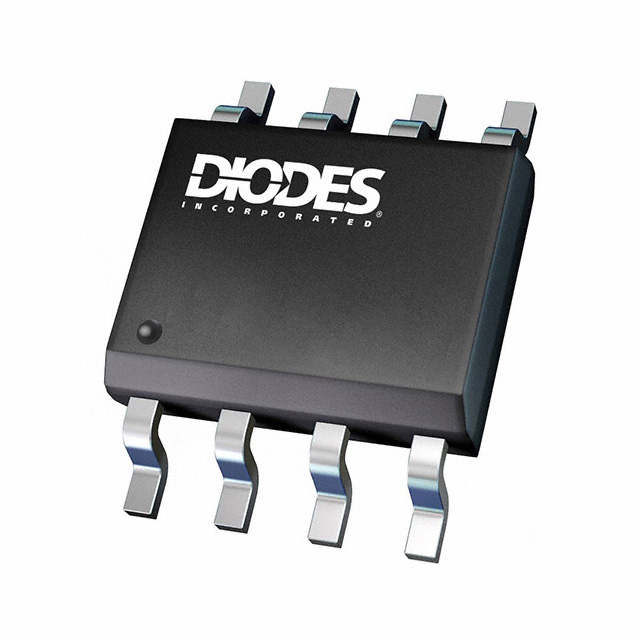

| Part Number | AP6503SP-13 | AP6507SP-13 | AP65403SP-13 | AP65503SP-13 | AP6502SP-13 | AP6503ASP-13 |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.7V | 4.5V | 4.75V | 4.75V | 4.7V | 4.75V |
| Voltage - Input (Max) | 23V | 18V | 17V | 17V | 18V | 23V |
| Voltage - Output (Min/Fixed) | 0.925V | 0.808V | 2.5V | 2.5V | 0.925V | 0.925V |
| Voltage - Output (Max) | 20V | 15V | 12V | 12V | 16V | 20V |
| Current - Output | 3A | 3A | 4A | 5A | 2A | 3A |
| Frequency - Switching | 340kHz | 500kHz | 750kHz | 750kHz | 340kHz | 240kHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SO-EP | 8-SO-EP | 8-SO-EP | 8-SO-EP | 8-SO-EP | 8-SO-EP |
