Please send RFQ , we will respond immediately.

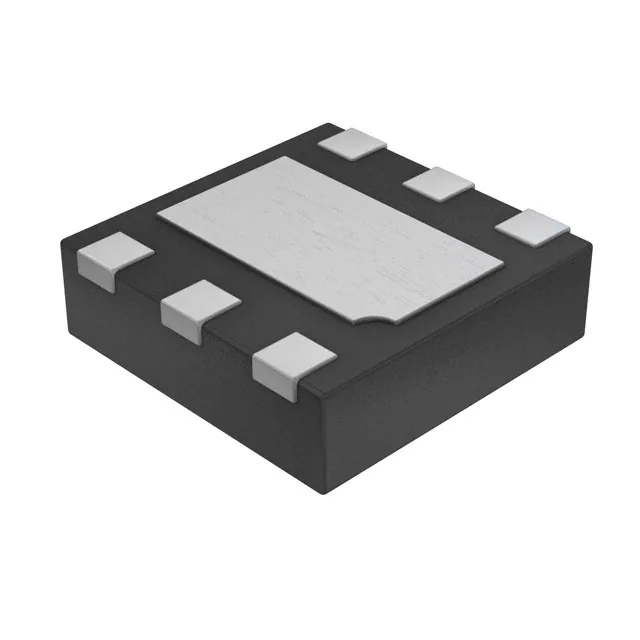

| Part Number | AP5726FDCG-7 | AP5724FDCG-7 | AP5725FDCG-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Supply (Min) | 2.7V | 2.7V | 2.7V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output | - | - | 26V |
| Current - Output / Channel | 750mA (Switch) | 750mA (Switch) | 750mA (Switch) |
| Frequency | 1.2MHz | 1.2MHz | 1.2MHz |
| Dimming | PWM | PWM | PWM |
| Applications | Backlight | Backlight | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad |
| Supplier Device Package | U-DFN2020-6 (Type C) | U-DFN2020-6 (Type C) | U-DFN2020-6 (Type C) |
