Please send RFQ , we will respond immediately.

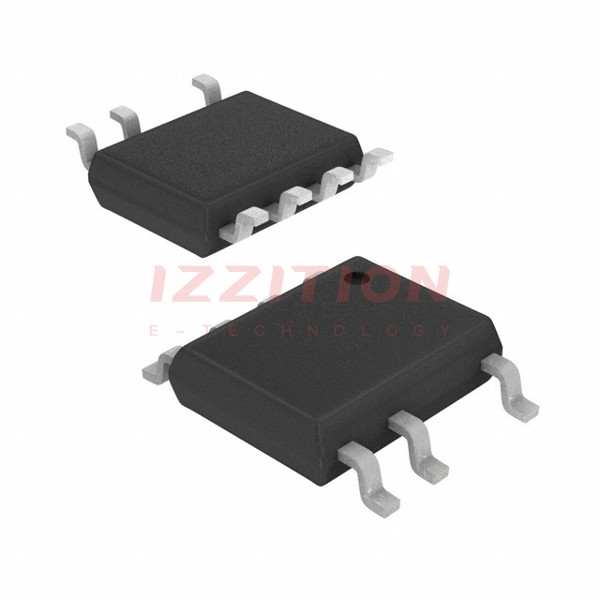

| Part Number | AP3983CMTR-G1 | AP3983RMTR-G1 | AP3983BMTR-G1 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Output Isolation | Isolated | Isolated | Isolated |
| Internal Switch(s) | Yes | Yes | Yes |
| Voltage - Breakdown | 650V | 700V | 650V |
| Topology | Flyback | Flyback | Flyback |
| Voltage - Start Up | 15.5 V | 15.5 V | 15.5 V |
| Voltage - Supply (Vcc/Vdd) | 6.82V ~ 25V | 6.82V ~ 25V | 6.82V ~ 25V |
| Duty Cycle | - | - | - |
| Frequency - Switching | 65kHz | 80kHz | 65kHz |
| Power (Watts) | 6 W | 10 W | 6 W |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Short Circuit |
| Control Features | - | - | - |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 150°C (TJ) | -40°C ~ 105°C (TA) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads | 8-SOIC (0.154", 3.90mm Width), 7 Leads | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SO | 7-SO | 7-SO |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
