| Part Number | AP3602AKTR-E1 | AP3602AKTR-G1 | AP3602BKTR-E1 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Active | Obsolete |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Supply (Min) | 2.7V | 2.7V | 2.7V |
| Voltage - Supply (Max) | 5V | 5V | 4.5V |
| Voltage - Output | 4.8V ~ 5.2V | 4.8V ~ 5.2V | 4.8V ~ 5.2V |
| Current - Output / Channel | 100mA | 100mA | 100mA |
| Frequency | 1.2MHz | 1.2MHz | 1.2MHz |
| Dimming | - | - | - |
| Applications | Backlight, Camera Flash | Backlight, Camera Flash | Backlight, Camera Flash |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

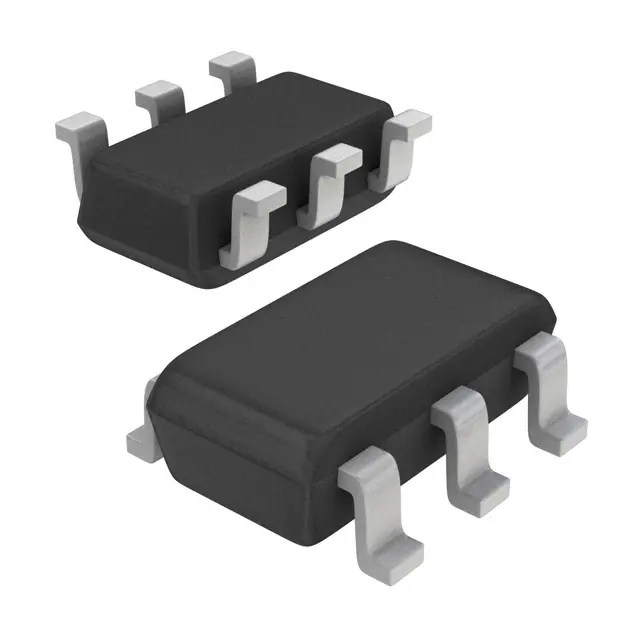

| Package / Case | SOT-23-6 | SOT-23-6 | SOT-23-6 |
| Supplier Device Package | SOT-23-6 | SOT-23-6 | SOT-23-6 |
