AP3585CMPTR-G1
  • Share:

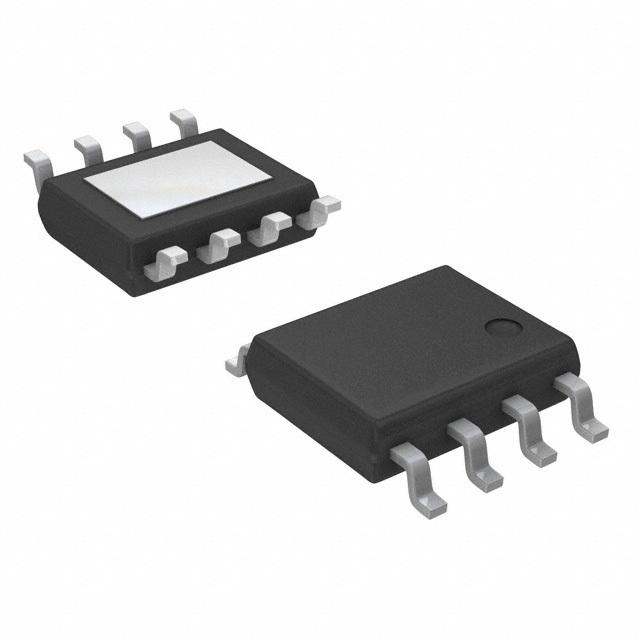

Diodes Incorporated AP3585CMPTR-G1

Manufacturer No:
AP3585CMPTR-G1
Manufacturer:
Diodes Incorporated
Package:
Tape & Reel (TR)
Datasheet:
AP3585CMPTR-G1 Datasheet
ECAD Model:
-
Description:
IC REG CTRLR BUCK 8SO
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Type:Transistor Driver
Function:Step-Down
Output Configuration:Positive
Topology:Buck
Number of Outputs:1
Output Phases:1
Voltage - Supply (Vcc/Vdd):4.5V ~ 13.2V
Frequency - Switching:200kHz
Duty Cycle (Max):82%
Synchronous Rectifier:Yes
Clock Sync:Yes
Serial Interfaces:-
Control Features:Enable, Phase Control
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package:8-SO-EP
0 Remaining View Similar

In Stock

-
367

Please send RFQ , we will respond immediately.

Similar Products

Part Number AP3585CMPTR-G1 AP3585MPTR-G1   AP3586CMPTR-G1   AP3585CMTR-G1   AP3581CMPTR-G1   AP3585AMPTR-G1   AP3585BMPTR-G1
Manufacturer Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Output Type Transistor Driver Transistor Driver Transistor Driver Transistor Driver Transistor Driver Transistor Driver Transistor Driver
Function Step-Down Step-Down Step-Down Step-Down Step-Down Step-Down Step-Down
Output Configuration Positive Positive Positive Positive Positive Positive Positive
Topology Buck Buck Buck Buck Buck Buck Buck
Number of Outputs 1 1 1 1 1 1 1
Output Phases 1 1 1 1 1 1 1
Voltage - Supply (Vcc/Vdd) 4.5V ~ 13.2V 4.5V ~ 13.2V 5V ~ 12V 4.5V ~ 13.2V 4.5V ~ 13.2V 4.5V ~ 13.2V 4.5V ~ 13.2V
Frequency - Switching 200kHz 300kHz 200kHz 200kHz 200kHz 300kHz 300kHz
Duty Cycle (Max) 82% 82% 82% 89% 80% 82% 82%
Synchronous Rectifier Yes Yes Yes Yes Yes Yes Yes
Clock Sync Yes No No No No Yes Yes
Serial Interfaces - - - - - - -
Control Features Enable, Phase Control Enable, Phase Control Enable, Phase Control Enable, Phase Control, Soft Start Enable, Phase Control Enable, Phase Control Enable, Phase Control
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width) Exposed Pad 8-SOIC (0.154", 3.90mm Width) Exposed Pad 8-SOIC (0.154", 3.90mm Width) Exposed Pad 8-SOIC (0.154", 3.90mm Width) 8-SOIC (0.154", 3.90mm Width) Exposed Pad 8-SOIC (0.154", 3.90mm Width) Exposed Pad 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package 8-SO-EP 8-SO-EP 8-PSOP 8-SO 8-PSOP 8-SO-EP 8-SO-EP
