Please send RFQ , we will respond immediately.

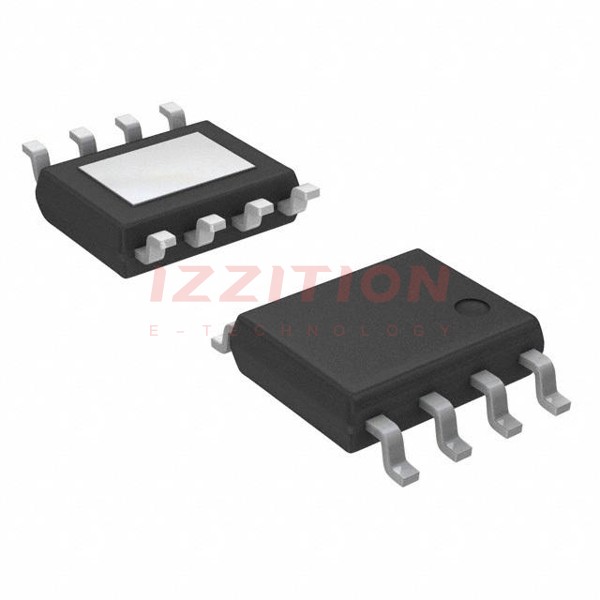

| Part Number | AP3581CMPTR-G1 | AP3585CMPTR-G1 | AP3586CMPTR-G1 | AP3581AMPTR-G1 | AP3581BMPTR-G1 |
|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 13.2V | 4.5V ~ 13.2V | 5V ~ 12V | 4.5V ~ 13.2V | 4.5V ~ 13.2V |
| Frequency - Switching | 200kHz | 200kHz | 200kHz | 300kHz | 300kHz |
| Duty Cycle (Max) | 80% | 82% | 82% | 80% | 80% |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes |
| Clock Sync | No | Yes | No | No | No |
| Serial Interfaces | - | - | - | - | - |
| Control Features | Enable, Phase Control | Enable, Phase Control | Enable, Phase Control | Enable, Phase Control | Enable, Phase Control |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-PSOP | 8-SO-EP | 8-PSOP | 8-PSOP | 8-SO-EP |
