Please send RFQ , we will respond immediately.

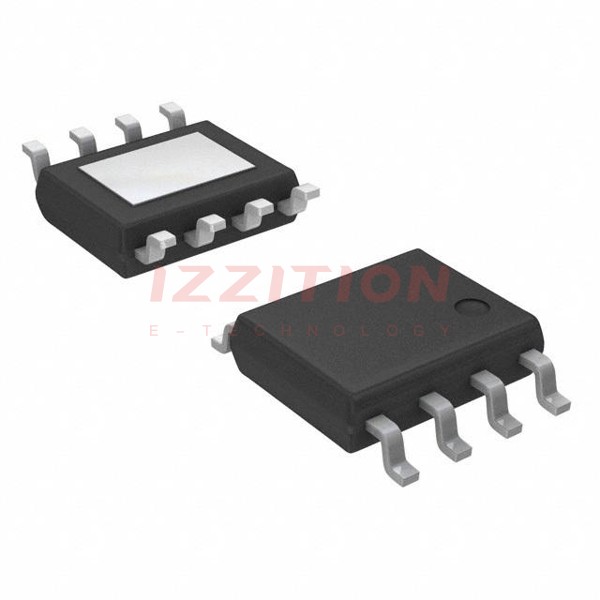

| Part Number | AP3503UHMPTR-G1 | AP3503HMPTR-G1 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete |
| Function | Step-Down | Step-Down |
| Output Configuration | Positive | Positive |
| Topology | Buck | Buck |
| Output Type | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V |
| Voltage - Input (Max) | 18V | 18V |
| Voltage - Output (Min/Fixed) | 0.925V | - |
| Voltage - Output (Max) | 16.2V | - |
| Current - Output | 3A | 3A |
| Frequency - Switching | 340kHz | 340kHz |
| Synchronous Rectifier | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-PSOP | 8-SO |
