Diodes Incorporated-AP2602FNTR-G1 - Temperature Sensors - Thermostats - Solid State Product Specifications and Latest Quotes

Trip Temperature Threshold:	Hot
Switching Temperature:	Programmable
Accuracy:	-
Current - Output (Max):	20mA
Output Type:	Open Drain
Output:	Active Low
Output Function:	/OverTemp
Selectable Hysteresis:	No
Features:	Selectable Trigger Voltage, Selectable Trip Point
Voltage - Supply:	2.7 V ~ 5.5 V
Current - Supply:	40µA, 55µA
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	16-VFQFN Exposed Pad
Supplier Device Package:	16-QFN (3x3)

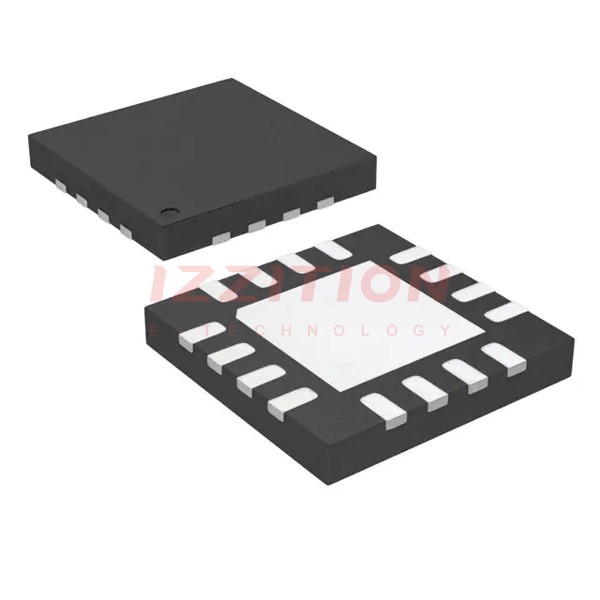

Diodes Incorporated AP2602FNTR-G1
