Please send RFQ , we will respond immediately.

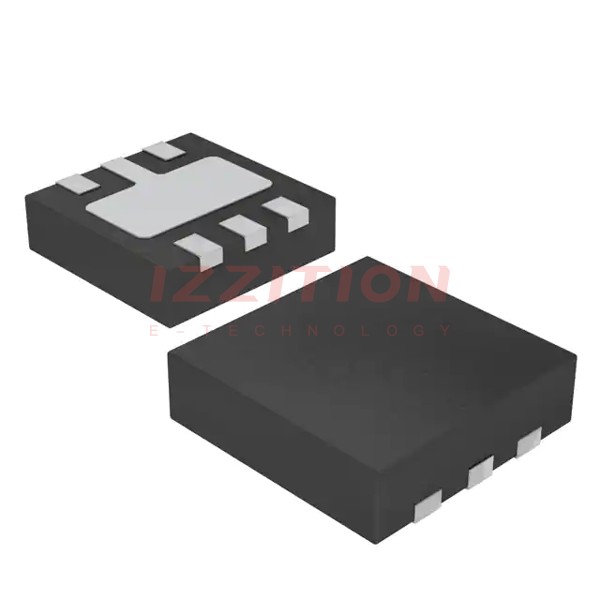

| Part Number | AP2501SN-7 | AP2511SN-7 | AP2301SN-7 | AP2401SN-7 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| Switch Type | USB Switch | USB Switch | USB Switch | USB Switch |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side |
| Output Type | P-Channel | P-Channel | P-Channel | P-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off |
| Voltage - Load | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required | Not Required |
| Current - Output (Max) | 2.5A | 2.5A | 2A | 2A |
| Rds On (Typ) | 70mOhm | 70mOhm | 70mOhm | 70mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Load Discharge, Status Flag | Load Discharge, Status Flag | Load Discharge, Status Flag | Load Discharge, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | U-DFN2020-6 | U-DFN2020-6 | U-DFN2020-6 | U-DFN2020-6 |
| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad |
