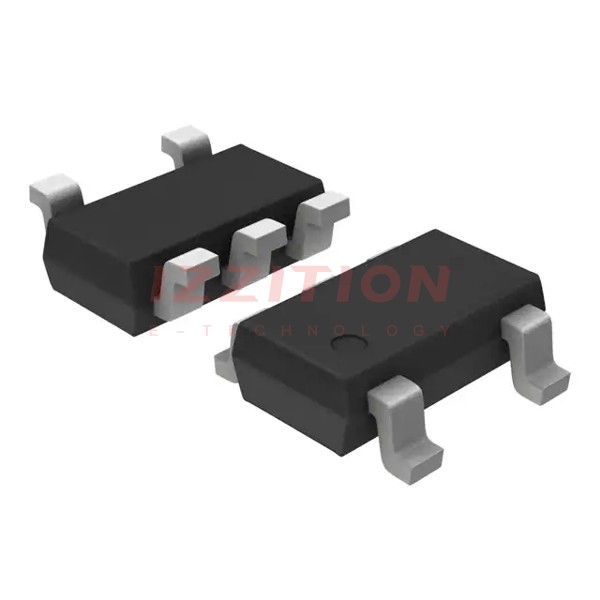

| Part Number | AP22815AWT-7 | AP22815BWT-7 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| Switch Type | USB Switch | USB Switch |
| Number of Outputs | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | High Side | High Side |
| Output Type | N/P-Channel | N/P-Channel |
| Interface | On/Off | On/Off |
| Voltage - Load | 3V ~ 5.5V | 3V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V |
| Current - Output (Max) | 3A | 3A |
| Rds On (Typ) | 40mOhm | 40mOhm |
| Input Type | Non-Inverting | Non-Inverting |
| Features | Load Discharge, Status Flag | Load Discharge, Status Flag |
| Fault Protection | Over Current, Over Temperature, Over Voltage, Short Circuit | Over Current, Over Temperature, Over Voltage, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | TSOT-25 | TSOT-25 |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 | SOT-23-5 Thin, TSOT-23-5 |
