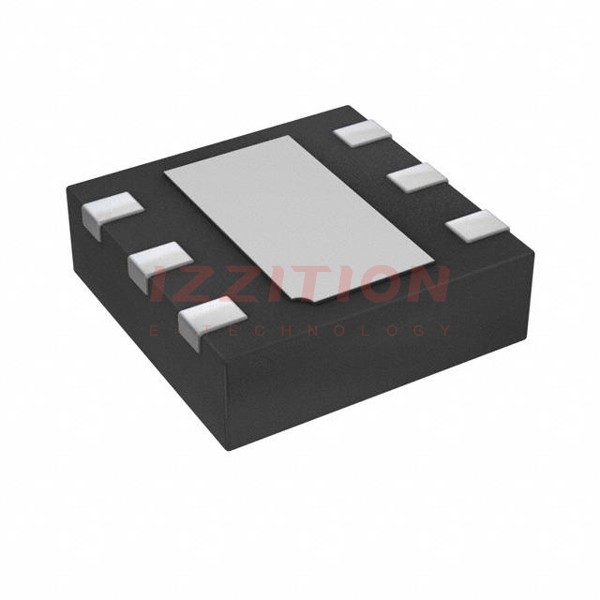

| Part Number | AP2280-2FMG-7 | AP2280-1FMG-7 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | High Side | High Side |
| Output Type | P-Channel | P-Channel |
| Interface | On/Off | On/Off |
| Voltage - Load | 1.5V ~ 6V | 1.5V ~ 6V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required |
| Current - Output (Max) | 2A | 2A |
| Rds On (Typ) | 80mOhm | 80mOhm |
| Input Type | Non-Inverting | Non-Inverting |
| Features | Load Discharge, Slew Rate Controlled | Load Discharge, Slew Rate Controlled |
| Fault Protection | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | U-DFN2018-6 | U-DFN2018-6 |
| Package / Case | 6-UFDFN Exposed Pad | 6-UFDFN Exposed Pad |
