Please send RFQ , we will respond immediately.

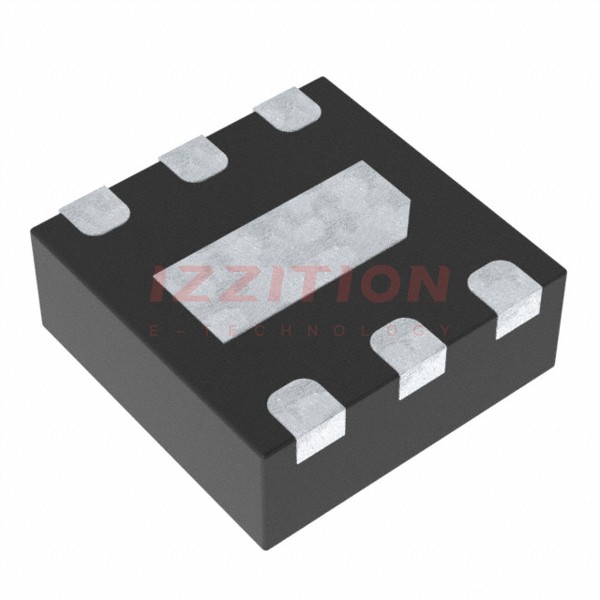

| Part Number | AP22653FDZ-7 | AP22652FDZ-7 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | High Side | High Side |
| Output Type | P-Channel | P-Channel |
| Interface | On/Off | On/Off |
| Voltage - Load | 3.5V ~ 5.5V | 3V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required |
| Current - Output (Max) | 2.1A | 2.1A |
| Rds On (Typ) | 65mOhm | 65mOhm |
| Input Type | Non-Inverting | Inverting |
| Features | Load Discharge, Slew Rate Controlled, Status Flag | Load Discharge, Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | W-DFN2020-6 (Type A1) | W-DFN2020-6 (Type A1) |
| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
