| Part Number | AP2132MP-1.2TRG1 | AP2132MP-1.8TRG1 | AP2132UMP-1.2TRG1 | AP2132MP-1.5TRG1 | AP2132BMP-1.2TRG1 |
|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 0.6V (1.2V) | 0.6V (1.8V) | 0.6V (1.2V) | 0.6V (1.5V) | 0.8V (1.2V) |
| Voltage - Output (Max) | 3V | 3V | 3V | 3V | 3V |
| Voltage Dropout (Max) | 0.45V @ 2A | 0.45V @ 2A | 0.45V @ 2A | 0.45V @ 2A | 0.45V @ 2A |
| Current - Output | 2A | 2A | 2A | 2A | 2A |
| Current - Quiescent (Iq) | 300 µA | 300 µA | 300 µA | 300 µA | 300 µA |
| Current - Supply (Max) | - | - | - | - | - |
| PSRR | 60dB (100Hz ~ 1kHz) | 60dB (100Hz ~ 1kHz) | 60dB (100Hz ~ 1kHz) | 60dB (100Hz ~ 1kHz) | 60dB (100Hz ~ 1kHz) |
| Control Features | Enable, Power Good | Enable, Power Good | Enable, Power Good | Enable, Power Good | Enable, Power Good |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

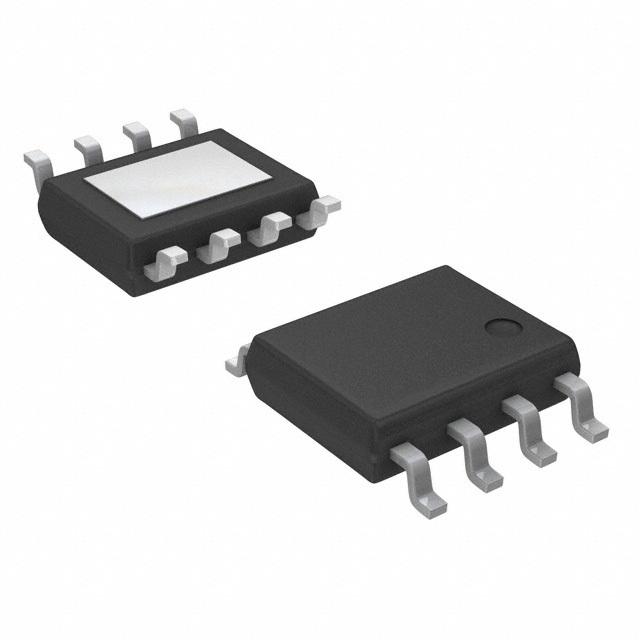

| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-PSOP | 8-SO-EP | 8-SO-EP | 8-PSOP | 8-SO-EP |
