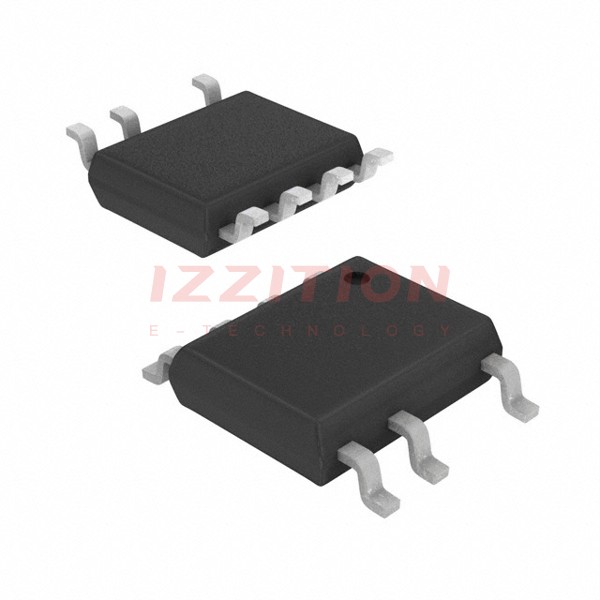

| Part Number | AP1695MTR-G1 | AP1685MTR-G1 | AP1690MTR-G1 | AP1694MTR-G1 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Type | AC DC Offline Switcher | AC DC Offline Switcher | AC DC Offline Switcher | AC DC Offline Switcher |
| Topology | Flyback, Step-Down (Buck), Step-Up (Boost) | Step-Down (Buck) | Flyback | Flyback, Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | No | No |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Supply (Min) | 7V | 8V | 9V | 7V |
| Voltage - Supply (Max) | 25V | 25V | 21V | 25V |
| Voltage - Output | - | - | - | - |
| Current - Output / Channel | 2.5A | 2.5A | - | - |
| Frequency | - | - | - | - |
| Dimming | - | - | - | - |
| Applications | Lighting | - | Lighting | Lighting |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads | 8-SOIC (0.154", 3.90mm Width), 7 Leads | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 7-SO | 7-SO | 8-SO | 8-SO |
