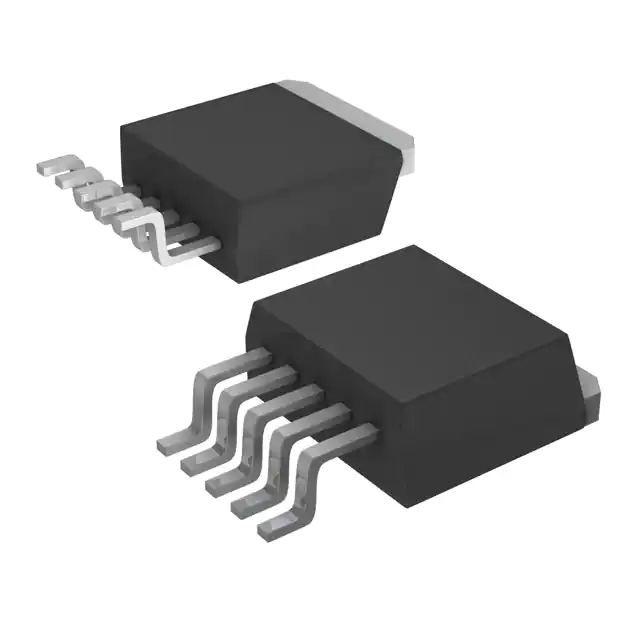

| Part Number | AP1512A-K5G-13 | AP1512A-K5L-13 | AP1512-K5G-13 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete |
| Function | - | Step-Down | - |
| Output Configuration | - | Positive | - |
| Topology | - | Buck | - |
| Output Type | - | Adjustable | - |
| Number of Outputs | - | 1 | - |
| Voltage - Input (Min) | - | 4.5V | - |
| Voltage - Input (Max) | - | 60V | - |
| Voltage - Output (Min/Fixed) | - | 1.23V | - |
| Voltage - Output (Max) | - | 37V | - |
| Current - Output | - | 3A | - |
| Frequency - Switching | - | 50kHz | - |
| Synchronous Rectifier | - | No | - |
| Operating Temperature | - | -20°C ~ 85°C (TA) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263-5 | TO-263-5 | TO-263-5 |
