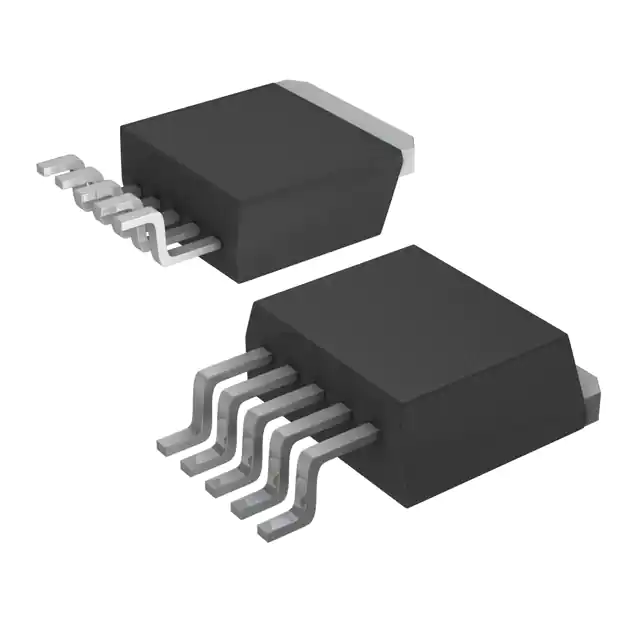

| Part Number | AP1506-K5G-13 | AP1506-K5L-13 | AP1501-K5G-13 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Active |
| Function | Step-Down | - | - |
| Output Configuration | Positive | - | - |
| Topology | Buck | - | - |
| Output Type | Adjustable | - | - |
| Number of Outputs | 1 | - | - |
| Voltage - Input (Min) | 4.5V | - | - |
| Voltage - Input (Max) | 22V | - | - |
| Voltage - Output (Min/Fixed) | 1.23V | - | - |
| Voltage - Output (Max) | 18V | - | - |
| Current - Output | 3A | - | - |
| Frequency - Switching | 150kHz | - | - |
| Synchronous Rectifier | No | - | - |
| Operating Temperature | -20°C ~ 85°C (TA) | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263-5 | TO-263-5 | TO-263-5 |
