Please send RFQ , we will respond immediately.
| Part Number | AP1506-50T5RG-U | AP1506-50T5RL-U | AP1501-50T5RG-U | AP1506-50T5G-U |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Discontinued at Digi-Key | Obsolete | Obsolete |
| Function | - | Step-Down | - | - |
| Output Configuration | - | Positive | - | - |
| Topology | - | Buck | - | - |
| Output Type | - | Fixed | - | - |
| Number of Outputs | - | 1 | - | - |
| Voltage - Input (Min) | - | 4.5V | - | - |
| Voltage - Input (Max) | - | 22V | - | - |
| Voltage - Output (Min/Fixed) | - | 5V | - | - |
| Voltage - Output (Max) | - | - | - | - |
| Current - Output | - | 3A | - | - |
| Frequency - Switching | - | 150kHz | - | - |
| Synchronous Rectifier | - | No | - | - |
| Operating Temperature | - | -20°C ~ 85°C (TA) | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

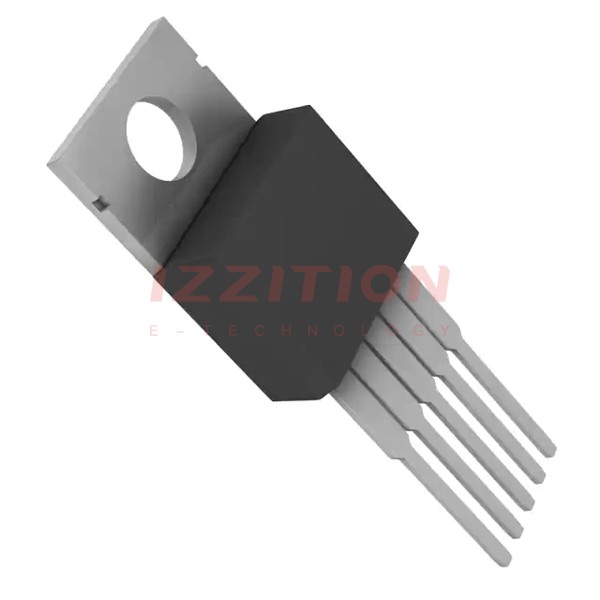

| Package / Case | TO-220-5 | TO-220-5 Formed Leads | TO-220-5 Formed Leads | TO-220-5 |
| Supplier Device Package | TO-220-5 | TO-220-5R | TO-220-5R | TO-220-5 |
