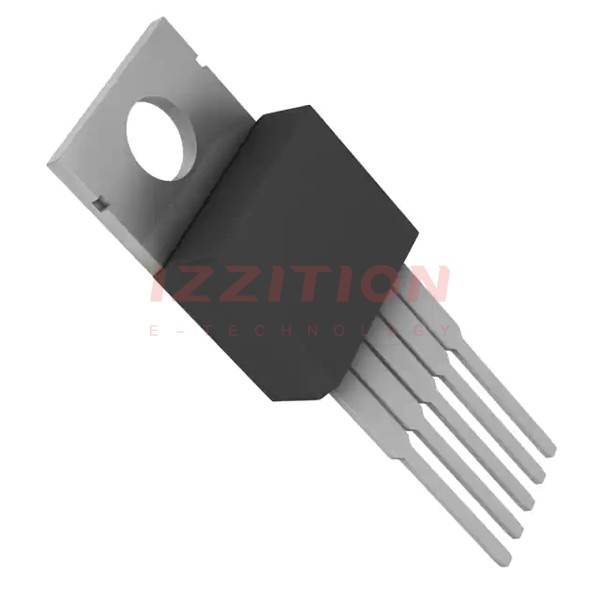

| Part Number | AP1501-12T5G-U | AP1501-12T5RG-U | AP1506-12T5G-U | AP1501-12T5L-U | AP1501A-12T5G-U | AP1501-12K5G-U |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Function | - | - | - | - | Step-Down | - |
| Output Configuration | - | - | - | - | Positive | - |
| Topology | - | - | - | - | Buck | - |
| Output Type | - | - | - | - | Fixed | - |
| Number of Outputs | - | - | - | - | 1 | - |
| Voltage - Input (Min) | - | - | - | - | 4.5V | - |
| Voltage - Input (Max) | - | - | - | - | 40V | - |
| Voltage - Output (Min/Fixed) | - | - | - | - | 12V | - |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Current - Output | - | - | - | - | 5A | - |
| Frequency - Switching | - | - | - | - | 150kHz | - |
| Synchronous Rectifier | - | - | - | - | No | - |
| Operating Temperature | - | - | - | - | -20°C ~ 85°C (TA) | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | - | Through Hole | Surface Mount |
| Package / Case | TO-220-5 | TO-220-5 Formed Leads | TO-220-5 | - | TO-220-5 | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-220-5 | TO-220-5R | TO-220-5 | - | TO-220-5 | TO-263-5 |
