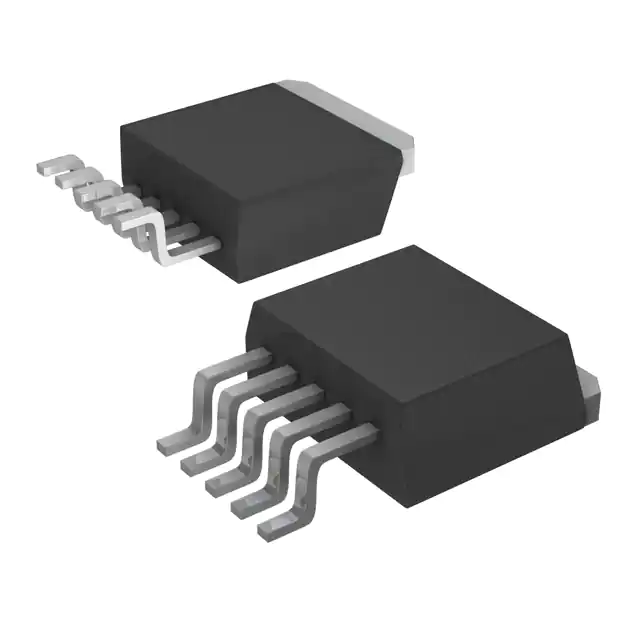

| Part Number | AP1501-12K5L-13 | AP1501A-12K5L-13 | AP1506-12K5L-13 | AP1501-12K5G-13 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Active | Active |
| Function | Step-Down | Step-Down | - | Step-Down |
| Output Configuration | Positive | Positive | - | Positive |
| Topology | Buck | Buck | - | Buck |
| Output Type | Fixed | Fixed | - | Fixed |
| Number of Outputs | 1 | 1 | - | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | - | 4.5V |
| Voltage - Input (Max) | 40V | 40V | - | 40V |
| Voltage - Output (Min/Fixed) | 12V | 12V | - | 12V |
| Voltage - Output (Max) | - | - | - | - |
| Current - Output | 3A | 5A | - | 3A |
| Frequency - Switching | 150kHz | 150kHz | - | 150kHz |
| Synchronous Rectifier | No | No | - | No |
| Operating Temperature | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | - | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | - | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | - | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263-5 | TO-263-5 | - | TO-263-5 |
