| Part Number | AP130-25WL-7 | AP130-28WL-7 | AP131-25WL-7 | AP130-35WL-7 | AP139-25WL-7 | AP130-15WL-7 | AP130-20WL-7 | AP130-25RL-7 | AP130-25WG-7 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Discontinued at Digi-Key | Obsolete | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 2.5V | 2.8V | 2.5V | 3.5V | 2.5V | 1.5V | 2V | 2.5V | 2.5V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.5V @ 300mA | 0.5V @ 300mA | 0.5V @ 300mA | 0.5V @ 300mA | - | 0.5V @ 300mA | 0.5V @ 300mA | 0.5V @ 300mA | 0.5V @ 300mA |
| Current - Output | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA |
| Current - Quiescent (Iq) | 100 µA | 100 µA | 100 µA | 100 µA | 60 µA | 100 µA | 100 µA | 100 µA | 100 µA |
| Current - Supply (Max) | - | - | - | - | - | - | - | - | - |
| PSRR | 58dB (100Hz) | 58dB (100Hz) | 60dB (100Hz) | 58dB (100Hz) | 75dB ~ 30dB (1KHz ~ 100KHz) | 58dB (100Hz) | 58dB (100Hz) | 58dB (100Hz) | 58dB (100Hz) |
| Control Features | - | - | Enable | - | Enable | - | - | - | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

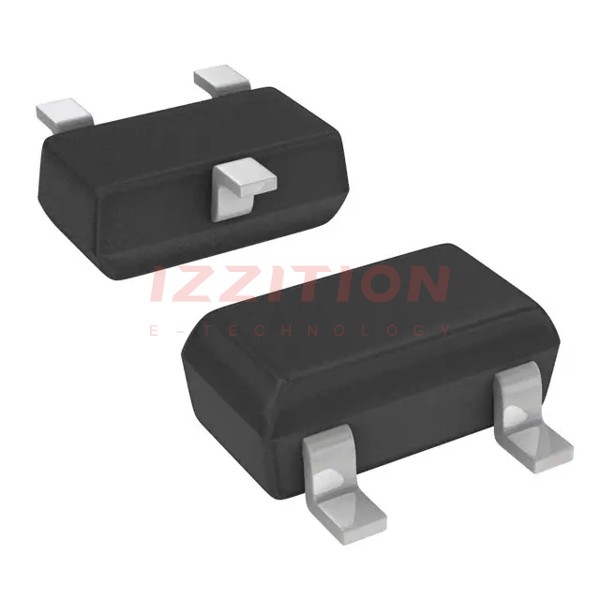

| Package / Case | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | SC-74A, SOT-753 | TO-236-3, SC-59, SOT-23-3 | SC-74A, SOT-753 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SC-59-3 | SC-59-3 | SOT-25 | SC-59-3 | SOT-25 | SC-59-3 | SC-59-3 | SC-59R | SC-59-3 |
