AP1186K5-L-U
  • Share:

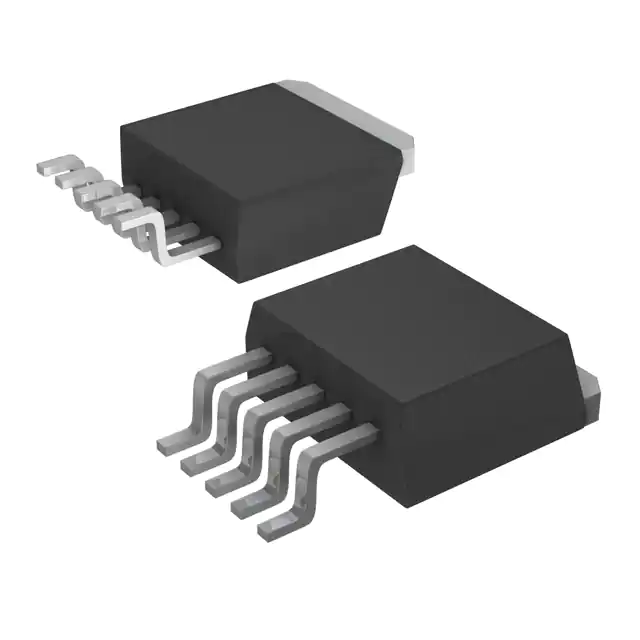

Diodes Incorporated AP1186K5-L-U

Manufacturer No:
AP1186K5-L-U
Manufacturer:
Diodes Incorporated
Package:
Tube
Datasheet:
AP1186K5-L-U Datasheet
ECAD Model:
-
Description:
IC REG LIN POS ADJ 1.5A TO263-5
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Configuration:Positive
Output Type:Adjustable
Number of Regulators:1
Voltage - Input (Max):16V
Voltage - Output (Min/Fixed):1.25V
Voltage - Output (Max):15.5V
Voltage Dropout (Max):0.38V @ 1.5A
Current - Output:1.5A
Current - Quiescent (Iq):10 mA
Current - Supply (Max):150 µA
PSRR:70dB (120Hz)
Control Features:-
Protection Features:Over Current, Over Temperature
Operating Temperature:0°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package:TO-263-5
0 Remaining View Similar

In Stock

-
91

Please send RFQ , we will respond immediately.

Similar Products

Part Number AP1186K5-L-U AP1186T5-L-U   AP1184K5-L-U
Manufacturer Diodes Incorporated Diodes Incorporated Diodes Incorporated
Product Status Obsolete Obsolete Obsolete
Output Configuration Positive Positive Positive
Output Type Adjustable Adjustable Adjustable
Number of Regulators 1 1 1
Voltage - Input (Max) 16V 16V 16V
Voltage - Output (Min/Fixed) 1.25V 1.25V 1.25V
Voltage - Output (Max) 15.5V 15.5V 15.5V
Voltage Dropout (Max) 0.38V @ 1.5A 0.38V @ 1.5A 0.85V @ 4A
Current - Output 1.5A 1.5A 4A
Current - Quiescent (Iq) 10 mA 10 mA 25 mA
Current - Supply (Max) 150 µA 150 µA 70 mA
PSRR 70dB (120Hz) 70dB (120Hz) 70dB (120Hz)
Control Features - - -
Protection Features Over Current, Over Temperature Over Current, Over Temperature Over Current, Over Temperature
Operating Temperature 0°C ~ 150°C (TJ) 0°C ~ 150°C (TJ) 0°C ~ 125°C (TJ)
Mounting Type Surface Mount Through Hole Surface Mount
Package / Case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA TO-220-5 TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package TO-263-5 TO-220-5 TO-263-5
