| Part Number | AP1186K5-50L-13 | AP1186K5-50G-13 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 16V | 16V |
| Voltage - Output (Min/Fixed) | 5V | 5V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.38V @ 1.5A | 0.38V @ 1.5A |
| Current - Output | 1.5A | 1.5A |
| Current - Quiescent (Iq) | 10 mA | 10 mA |
| Current - Supply (Max) | 150 µA | 150 µA |
| PSRR | 70dB (120Hz) | 70dB (120Hz) |
| Control Features | - | - |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 150°C (TJ) | 0°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

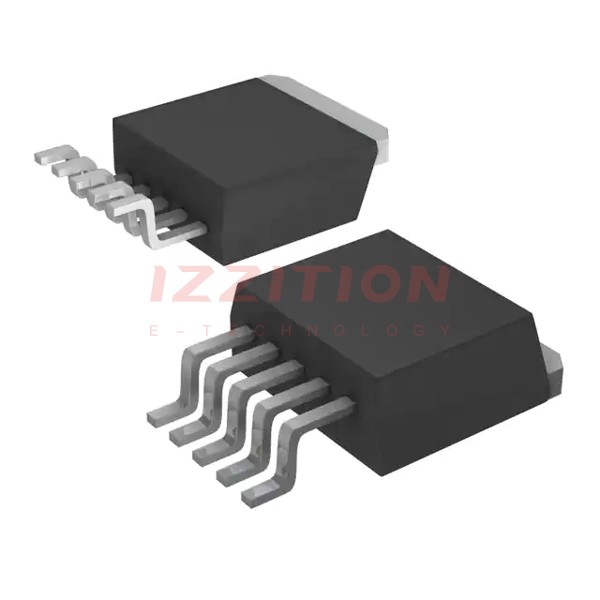

| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263-5 | TO-263-5 |
