| Part Number | AP1184K5-L-U | AP1184T5-L-U | AP1186K5-L-U |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 1.25V | 1.25V | 1.25V |
| Voltage - Output (Max) | 15.5V | 15.5V | 15.5V |
| Voltage Dropout (Max) | 0.85V @ 4A | 0.85V @ 4A | 0.38V @ 1.5A |
| Current - Output | 4A | 4A | 1.5A |
| Current - Quiescent (Iq) | 25 mA | 25 mA | 10 mA |
| Current - Supply (Max) | 70 mA | 70 mA | 150 µA |
| PSRR | 70dB (120Hz) | 70dB (120Hz) | 70dB (120Hz) |
| Control Features | - | - | - |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C (TJ) | 0°C ~ 125°C (TJ) | 0°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Through Hole | Surface Mount |

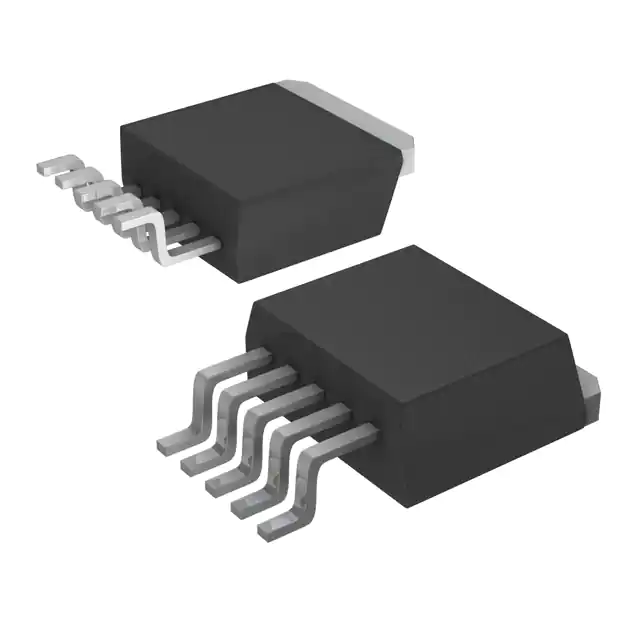

| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-220-5 | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263-5 | TO-220-5 | TO-263-5 |
