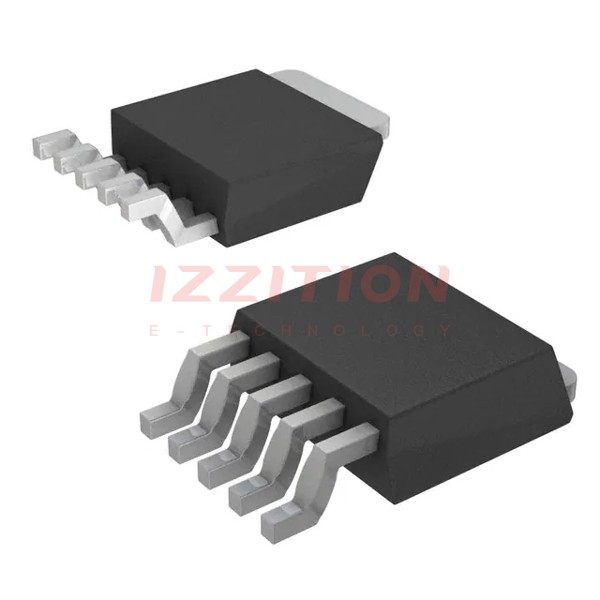

| Part Number | AP1118D50L-13 | AP1118D90L-13 | AP1118S50L-13 | AP1117D50L-13 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 18V | 18V | 18V | 18V |
| Voltage - Output (Min/Fixed) | 5V | 9V | 5V | 5V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 1.4V @ 1A | 1.4V @ 1A | 1.4V @ 1A | 1.4V @ 1A |
| Current - Output | 1A | 1A | 1A | 1A |
| Current - Quiescent (Iq) | 10 mA | 10 mA | 10 mA | 10 mA |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 60dB (120Hz) | 60dB (120Hz) | 60dB (120Hz) | 60dB (180Hz) |
| Control Features | Enable | Enable | Enable | - |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 150°C (TJ) | 0°C ~ 150°C (TJ) | 0°C ~ 150°C (TJ) | 0°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-252-6, DPak (5 Leads + Tab) | TO-252-6, DPak (5 Leads + Tab) | 8-SOIC (0.154", 3.90mm Width) | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252-5 | TO-252-5 | 8-SOP | TO-252-3 |
