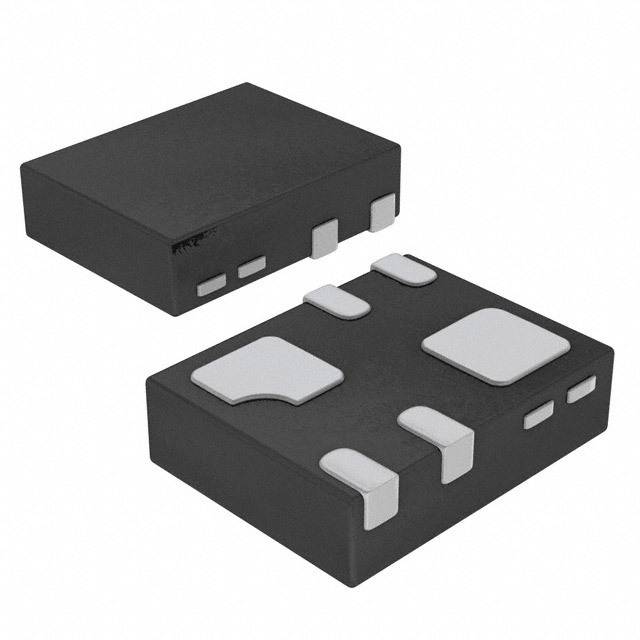

| Part Number | AL5802LP4-7 | AL5802LPL-7 | AL5802LP-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Linear | Linear | Linear |
| Topology | - | - | - |
| Internal Switch(s) | Yes | Yes | Yes |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Supply (Min) | 4.5V | 4.5V | 4.5V |
| Voltage - Supply (Max) | 30V | 30V | 30V |
| Voltage - Output | 30V | 30V | 30V |
| Current - Output / Channel | 100mA | 120mA | 150mA |
| Frequency | - | - | - |
| Dimming | PWM | PWM | PWM |
| Applications | Signage | - | Signage |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-XFDFN Exposed Pad | 6-UDFN Exposed Pad | 6-UFDFN Exposed Pad |
| Supplier Device Package | X2-DFN1310-6 (Type B) | U-DFN3030-6 | U-DFN1616-6 |
